Description
SPECIFICATIONS
Application: Fan, Fish tank, Light, LED, Lamps, Motorcycle Switch,Pumps,
Application scenario: Family, Farm, Factory, Office, Supermarket
Brand Name: Diese
Certification: CE,RoHS
Channel: 1
Choice: yes
Code: 1527 Learning Code/2262 Fixed Code
Control Port: V+ / V-
Feature: High-Power, Long Distance, Widely Use
Form-factor: Others
Frequency: 433 MHz
High-concerned chemical: none
Max Current: 30A
Model Number: 2401H2 + KT18
Modulation Mode: ASK superheterodyne wireless reception
Number of stored remote controls: about 20 pieces
Origin: Mainland China
Package: Yes
Quiescent Current: less than 5MA
RF Frequency: 433MHz
Remote Control Battery: 23A 12V(Include)
Remote Control Size: 97*40*16 mm
Support APP: No
Switch size: 47*29*93mm
Transmission distance: up to 1000m(Theoretically)
Use: Universal,Lighting,Switch
WaterProof Level: IP65
Wireless Communication: RF
Work Voltage: DC 8-80 V
Working Temperature: -30~+80 Celsius
semi_Choice: yes

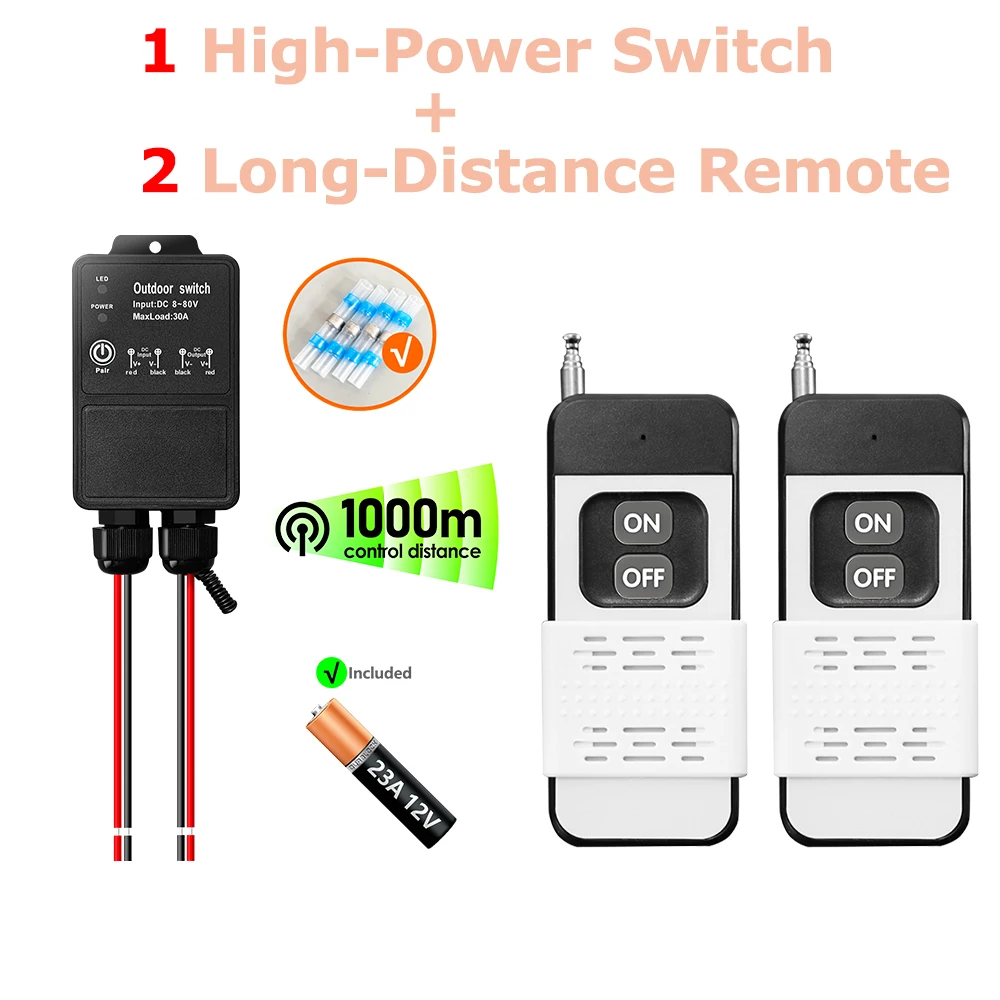

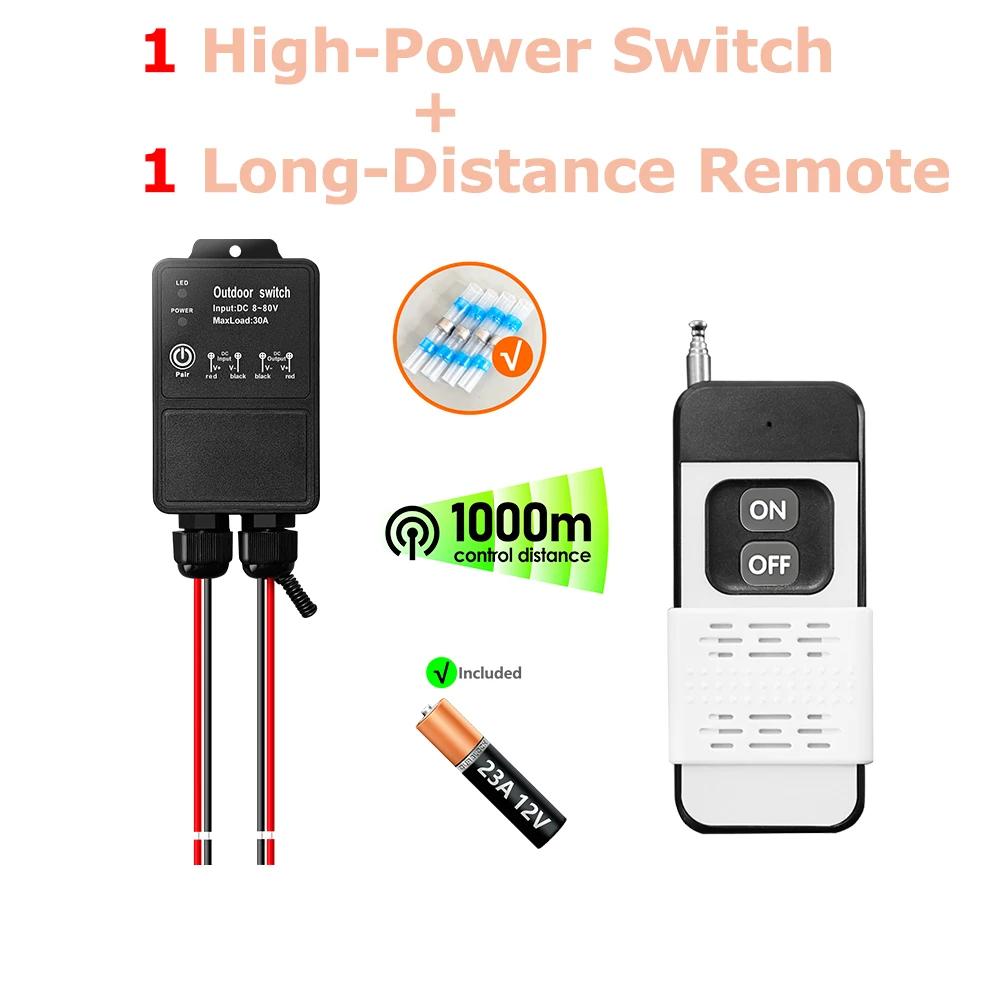

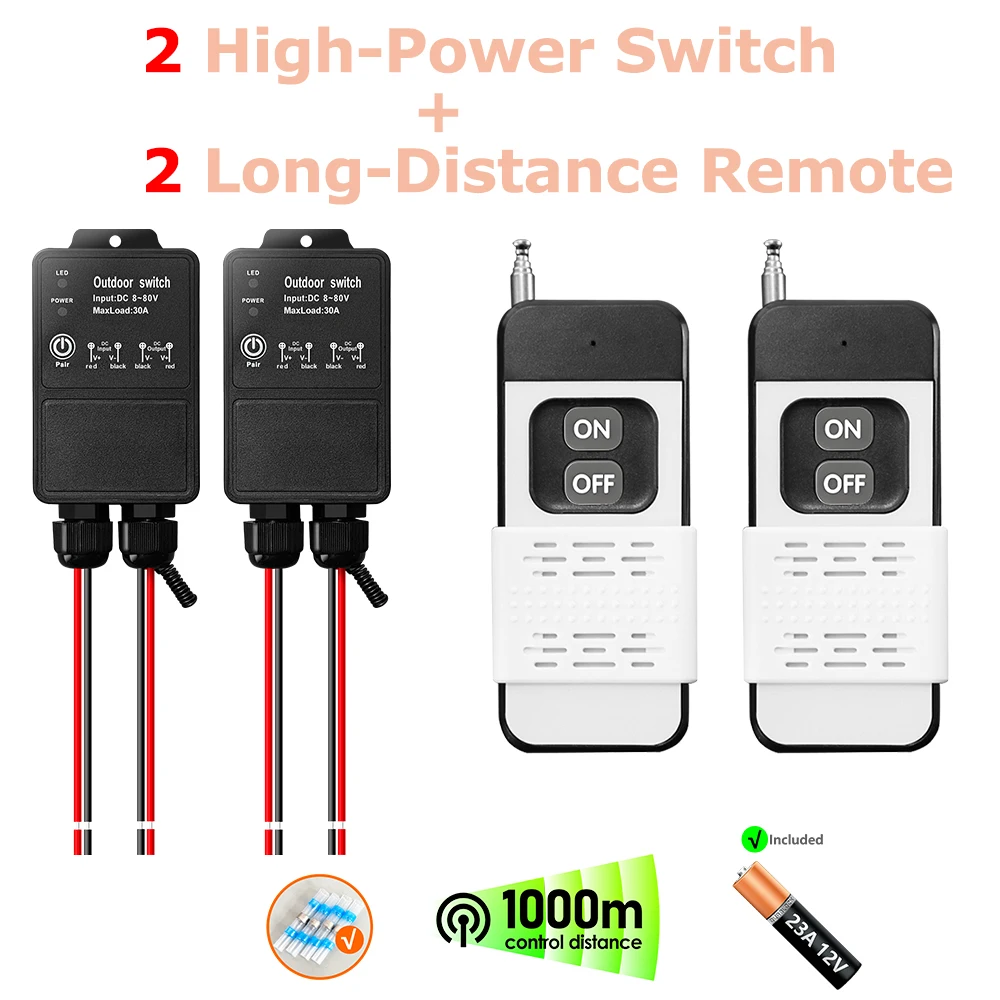

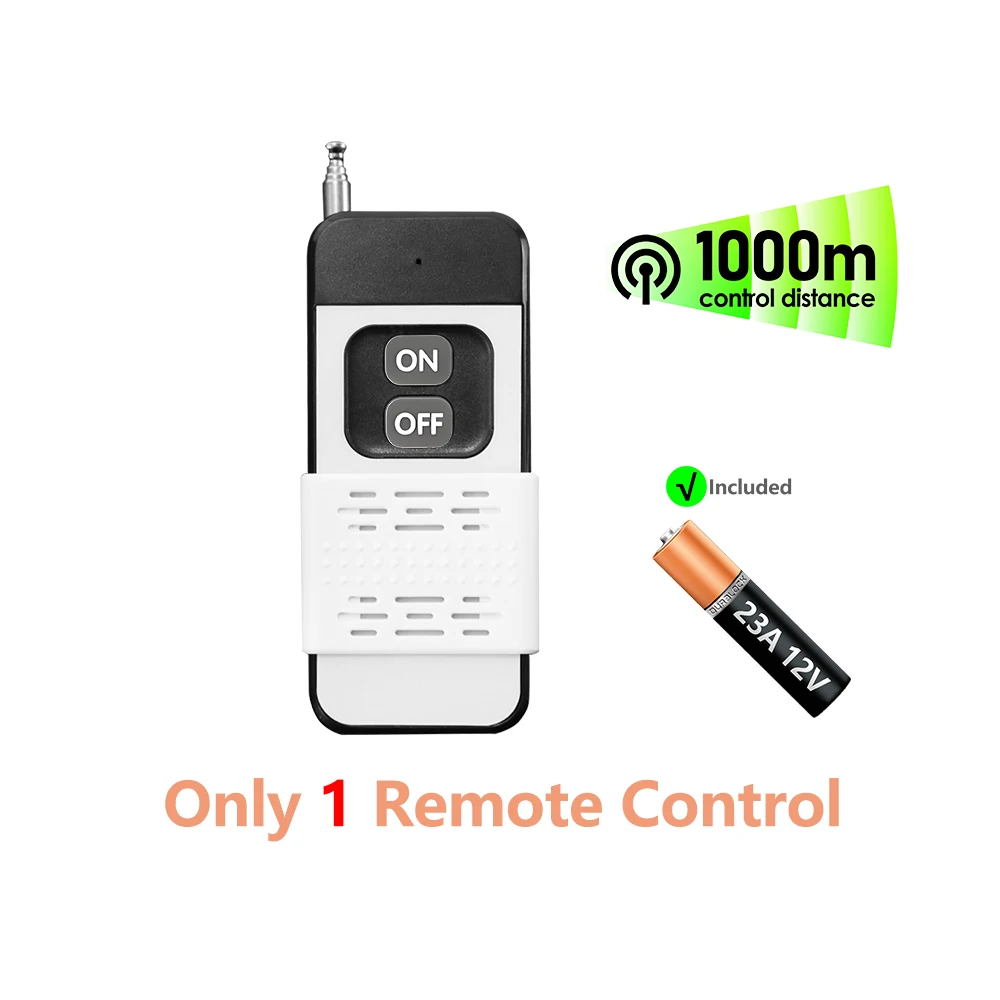

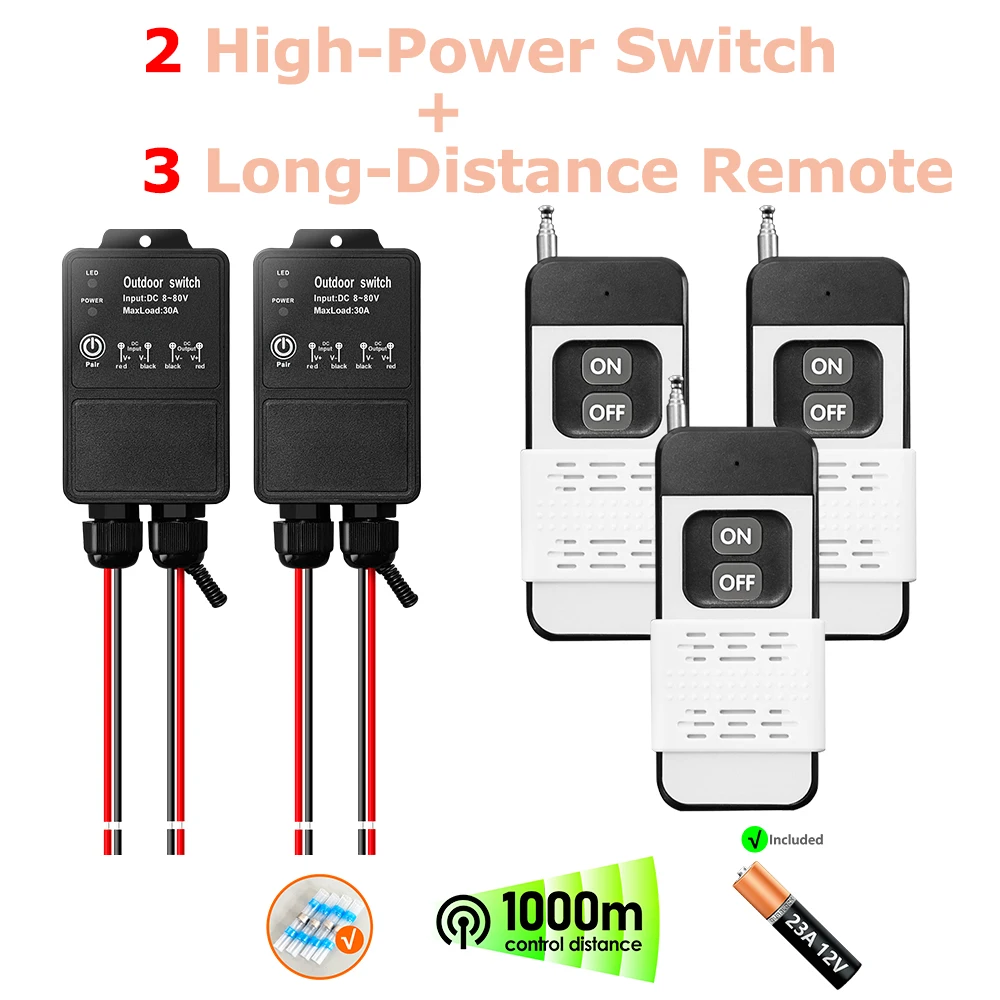

Before purchasing, please make sure whether you are buying a set or a single receiver or a single remote control. It is not recommended to buy a single receiver or a single remote control unless you have a single receiver or a single remote control to use with it. Thank you
Product Advantages

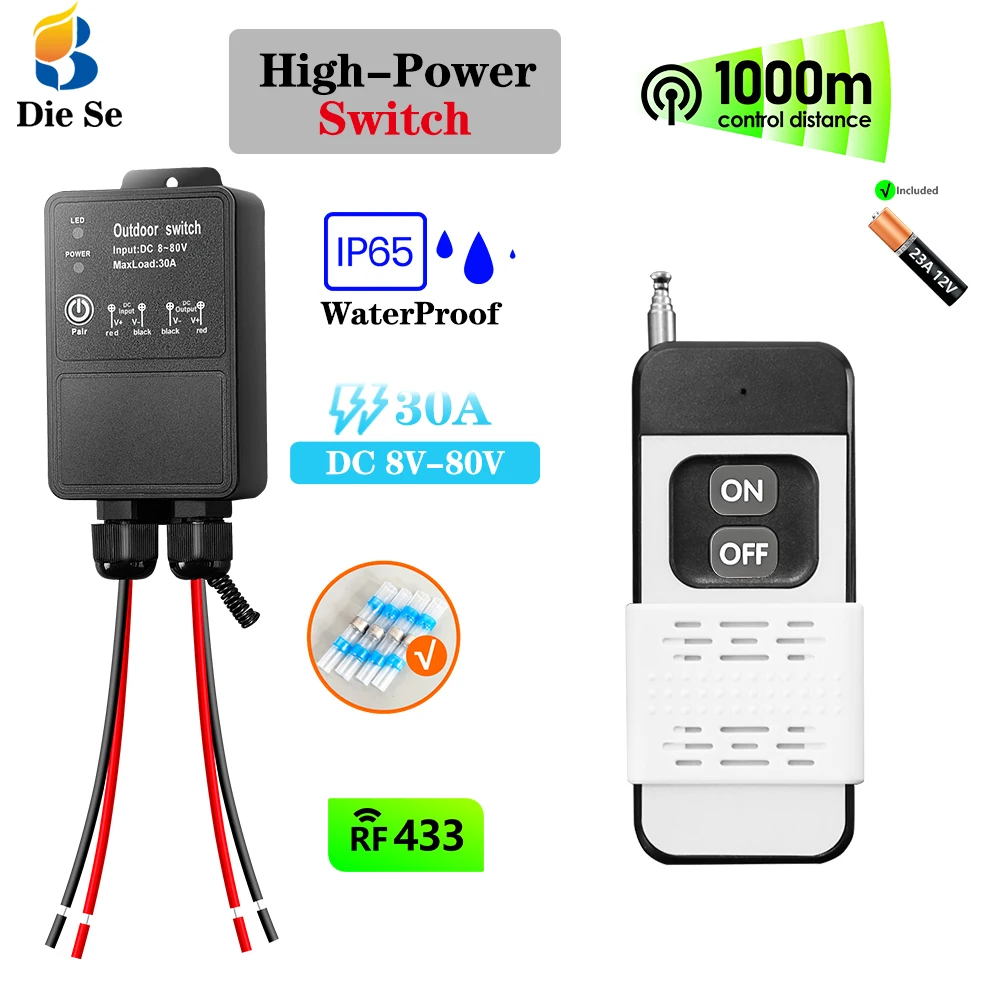

30A High-Power Switch Module

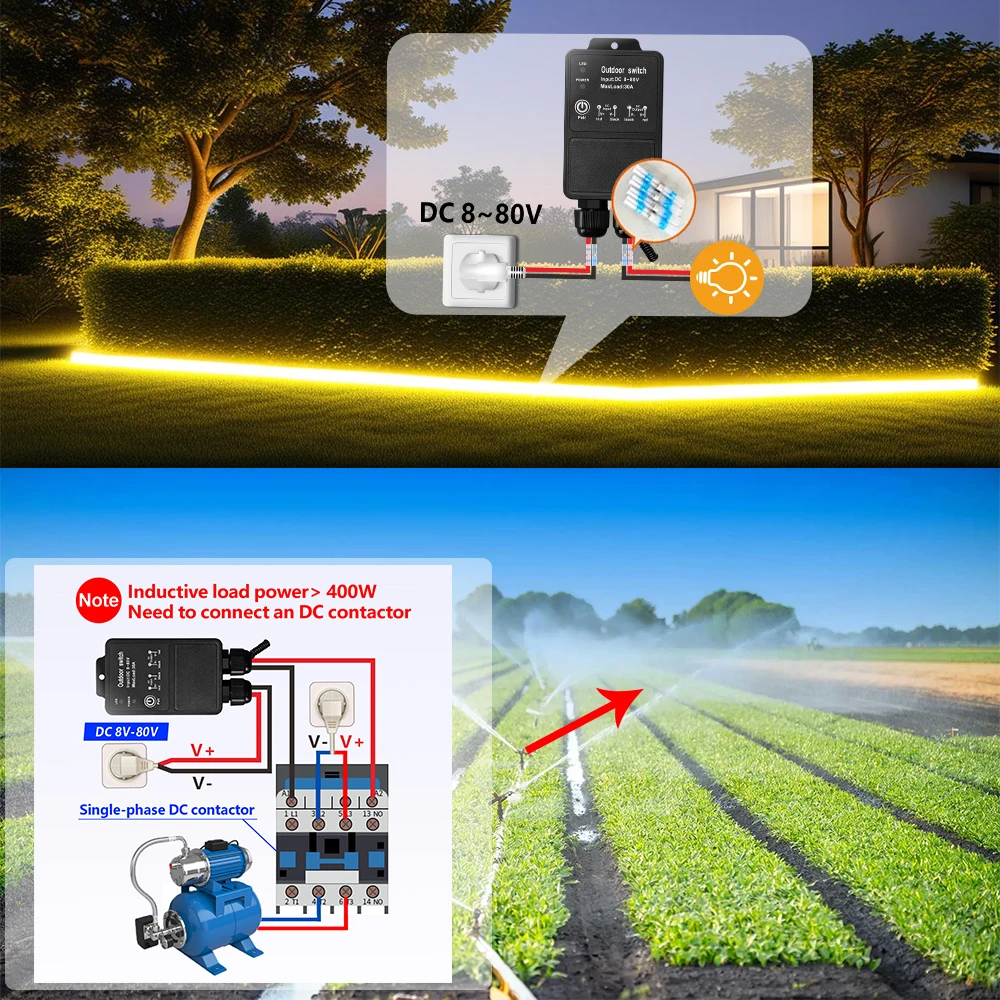

The working voltage is DC 8-80V, and the maximum current is 30A. Equipment capable of carrying 400W high power makes the receiver more widely used. The current of 10A is no longer sufficient, but 30A can meet this requirement very well.Easy to connect
There are only V+ and V- wires at the input and output terminals. You only need to find the correct wire port to connect. The operation is simple.433 Wireless radio frequency remote control
The remote control uses RF433MHz, 1527 learning code/2262 fixed code, and powerful chip functions. It is waterproof and can still be used normally after being splashed with water.Long Distance Launch

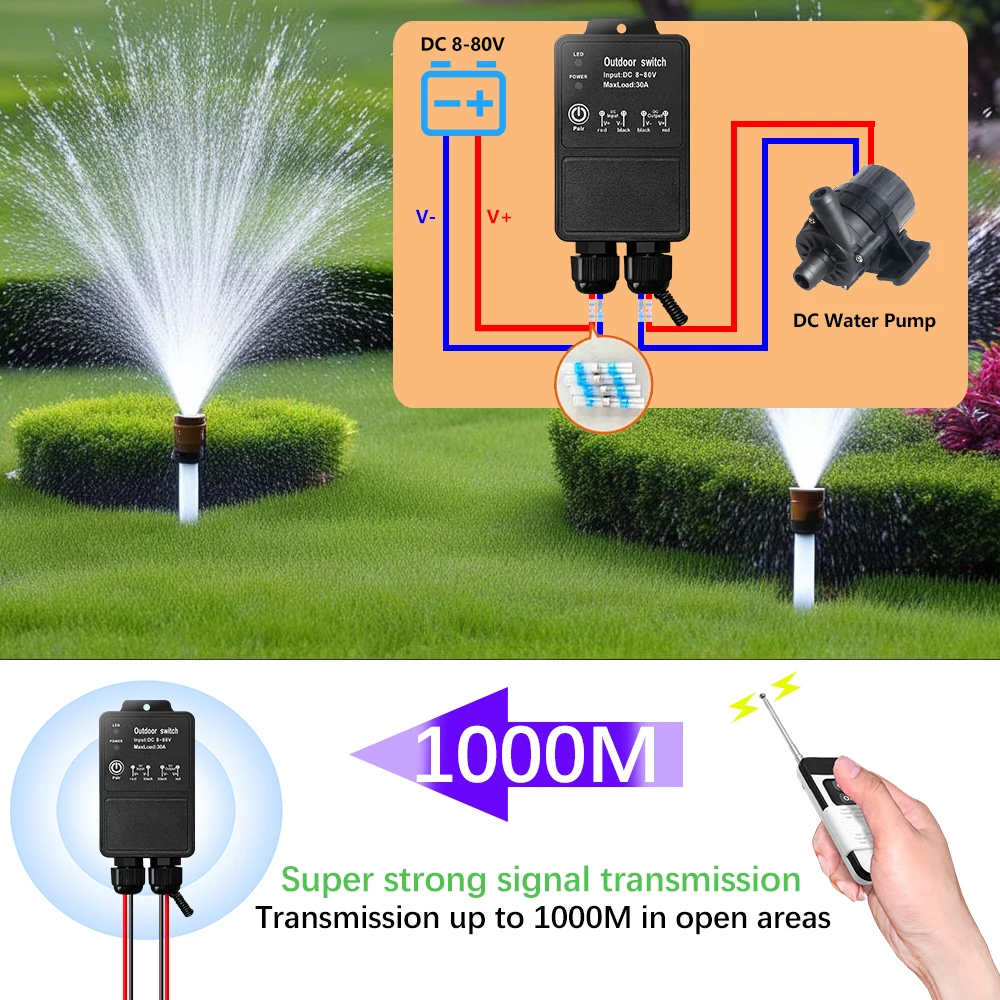

The transmitting distance in an open outdoor area can reach 1000M.2 Programmable Modes
There are 2 programmable modes: Momentary mode, Toggle mode. You can change the programming according to your own preferences, easy to operate.IP65 WaterProof Rating

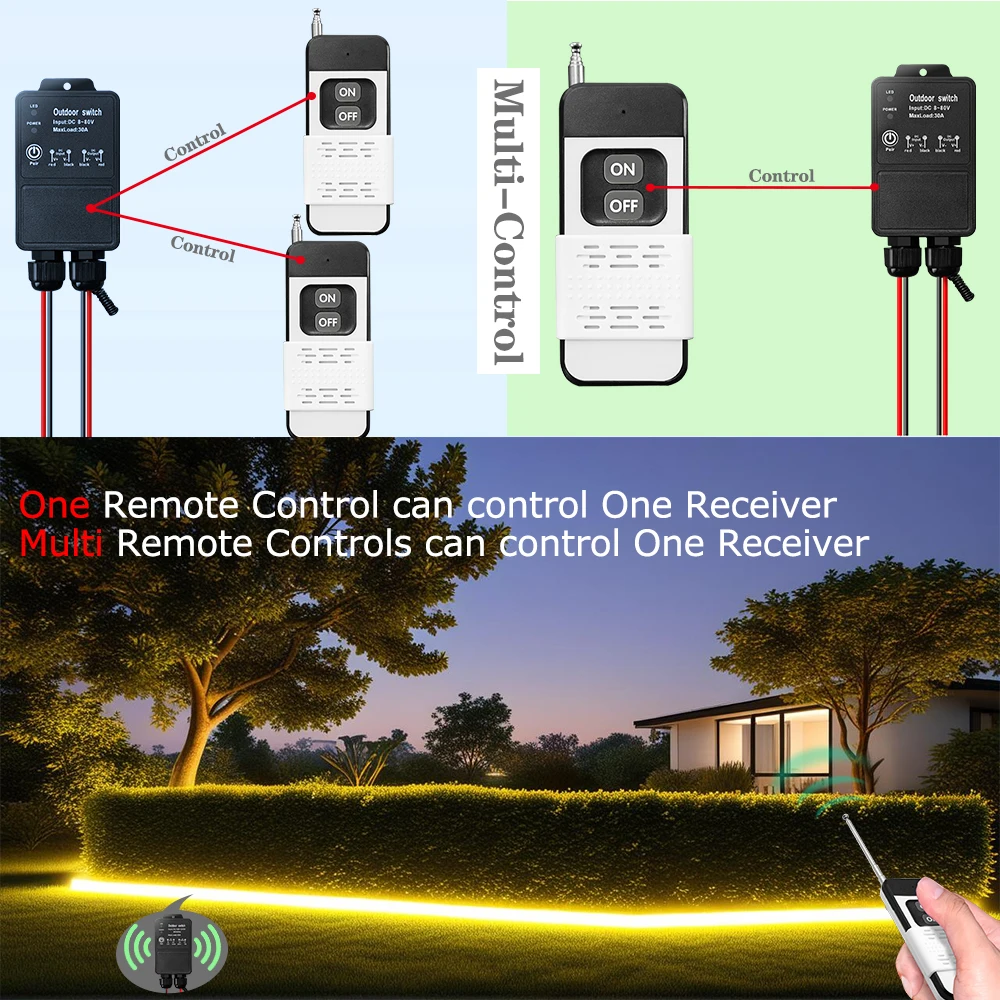

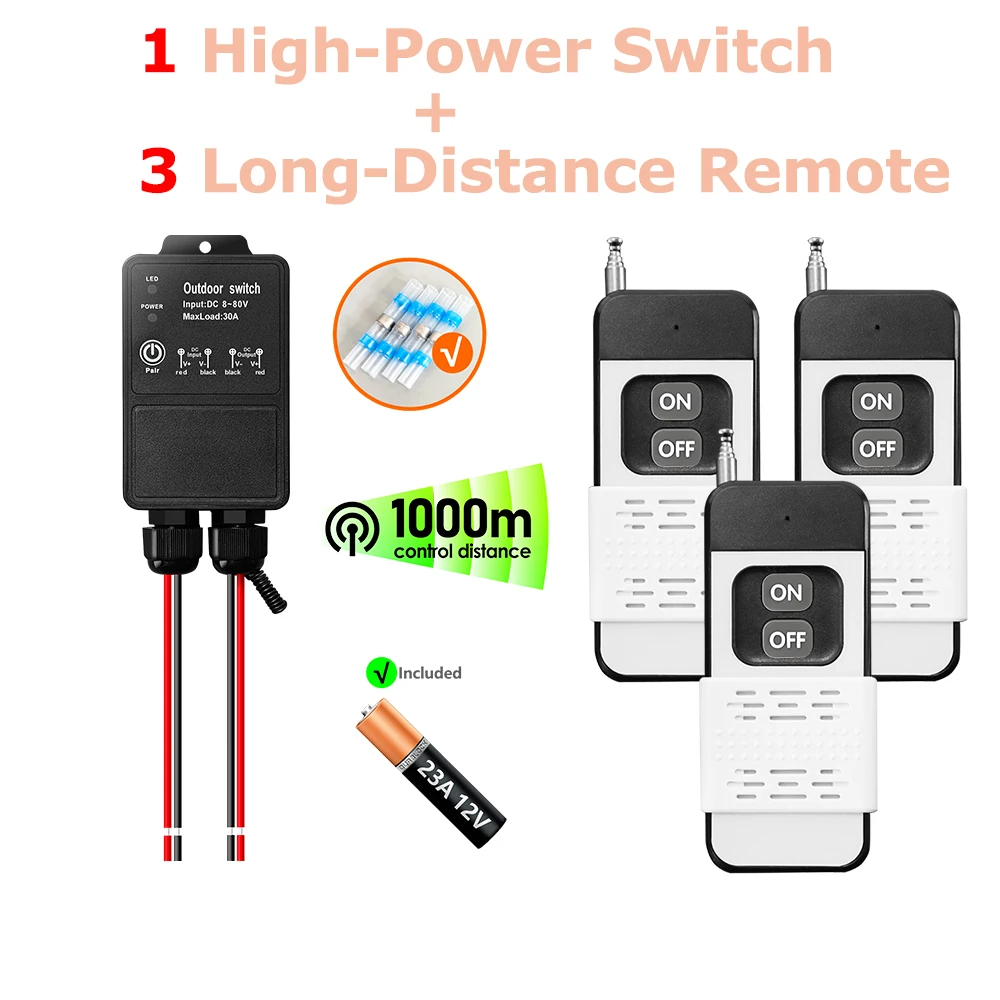

One receiver can be paired with multiple remote controls, and one remote control can be paired with multiple receivers
One receiver supports storing approximately 20 remote controls, and one remote control can control approximately 3 receivers to achieve diverse controls.Various application scenarios
Can be applied to homes, farms, factories, offices, supermarkets and other places. Can be used to connect lights, electric fans and other household equipment and electrical equipment.
*Comprehensive After-sales and Service.
Our after-sales service team can provide the most professional solution to any of your problems.
Parameter
Max current : 30A
RF frequency : 433MHz
Working temperature : -30~+80
Receiving Sensitivity : >97dbm
Amount of storage remote controls : about 20 pieces
Support encoding : 1527 leaning code/ 2262 fixed code
RF Operating mode : ASK superheterodyne wireless reception
Receiving range : Open space is up to 1000meters

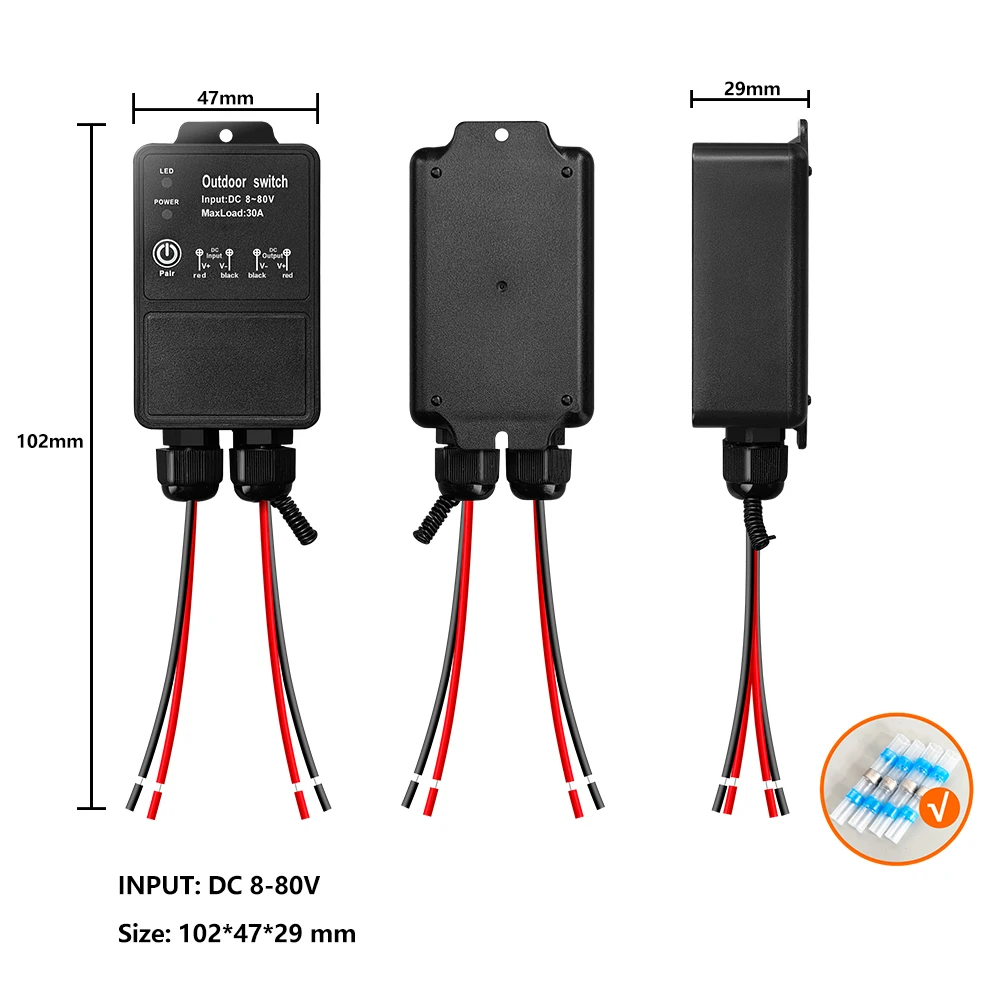

Size: 47*29*93mm

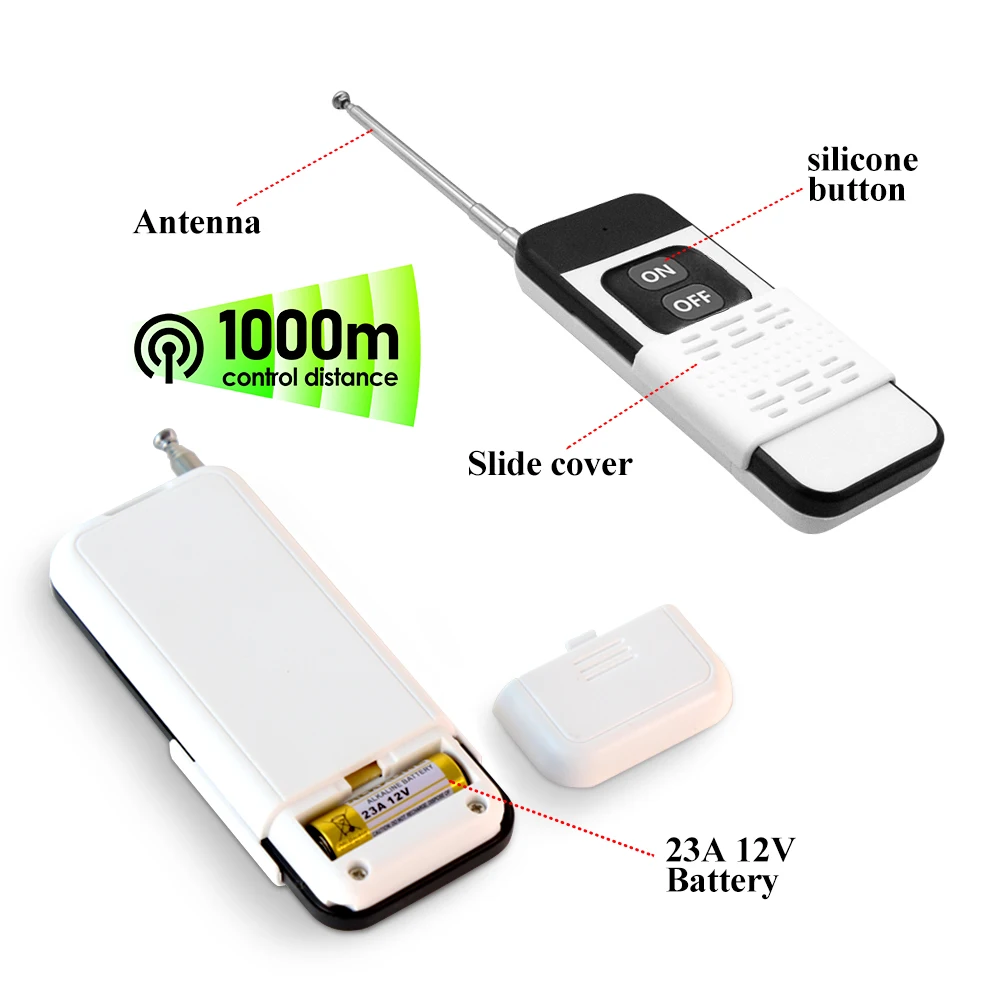

RF433mhz Remote Control
Support encoding : 1527 Leaning code/ 2262 fixed code
Remote distance : up to 1000m (theoretical distance)
Battery : 1 pcs 23A 12V (included)
RF frequency : 433MHz
Size: 97*40*16 mm
Product Features

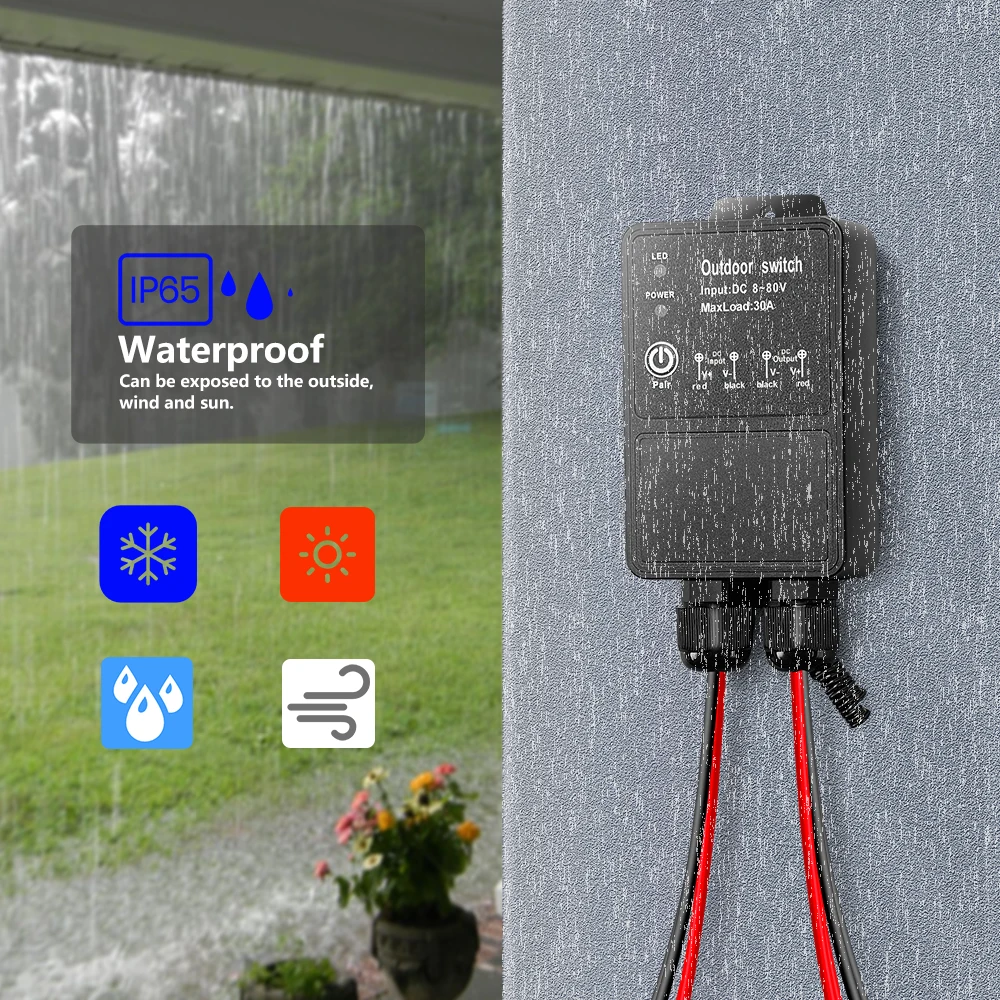

Special design, can be well waterproofed:
30A High Power, Wide range of product applications:
Remote control water pumpfantable lampLED lightbulbventilatorsignal transmission.....
Stable Signal , Anti-interference:
The maximum control distance can be up to 1000 meters in open areas ..
Receiver and remote control enable multiple controls:
One receiver can store the data of approximately 20 remote controls, and one remote control can control approximately 3 receivers.

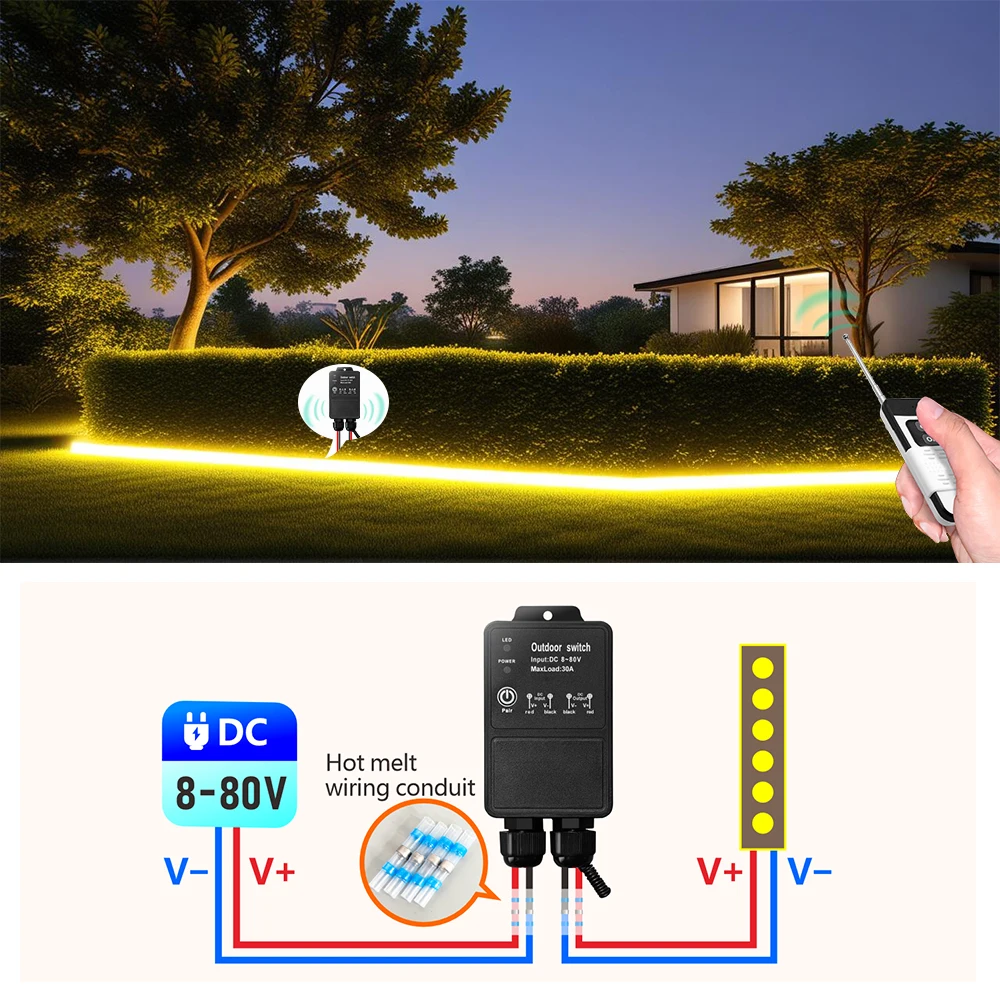

Simple Wiring
Intelligent DIY control methods
*Latched Mode*
2. Pressthe "OFF" button, The device will turn OFF.

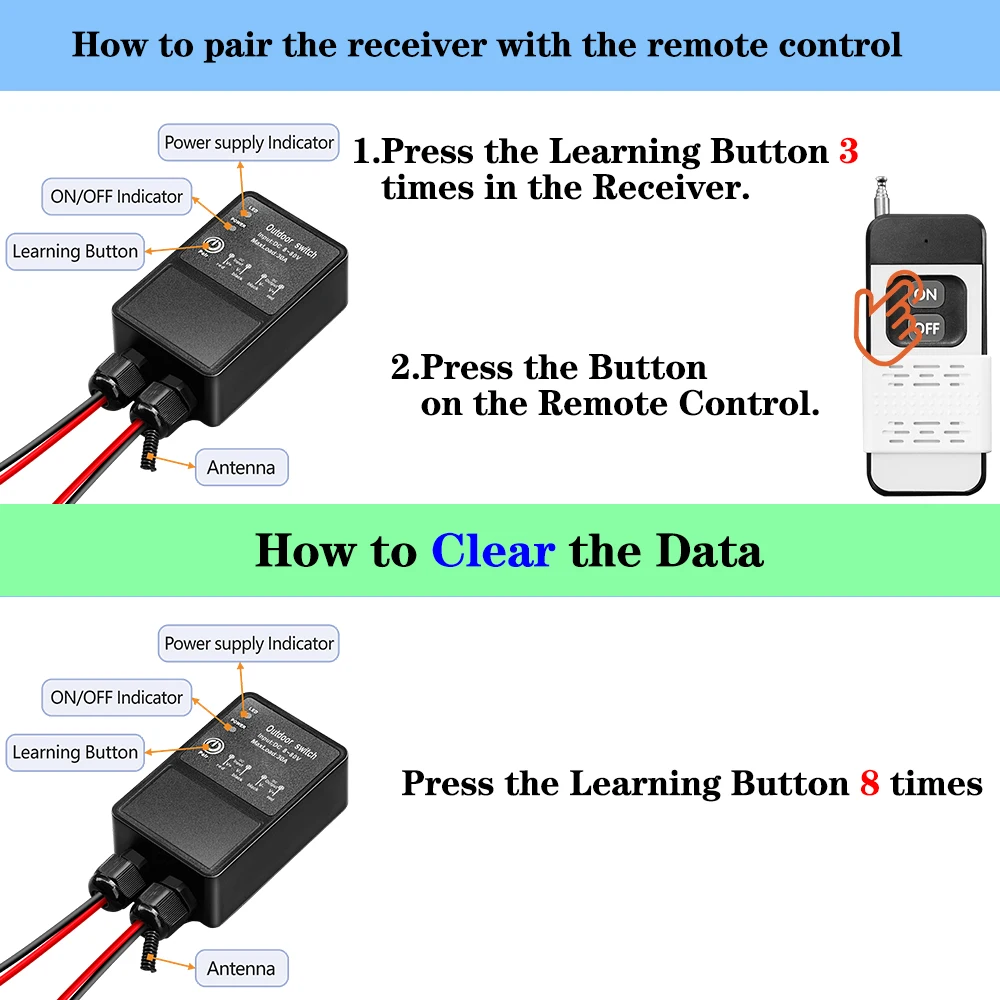

Signal pairing
Note
2. After deleted the data, all the remote controls cannot work any more.
Clear data:
Pair RF433mhz signal:
*Latched Mode*

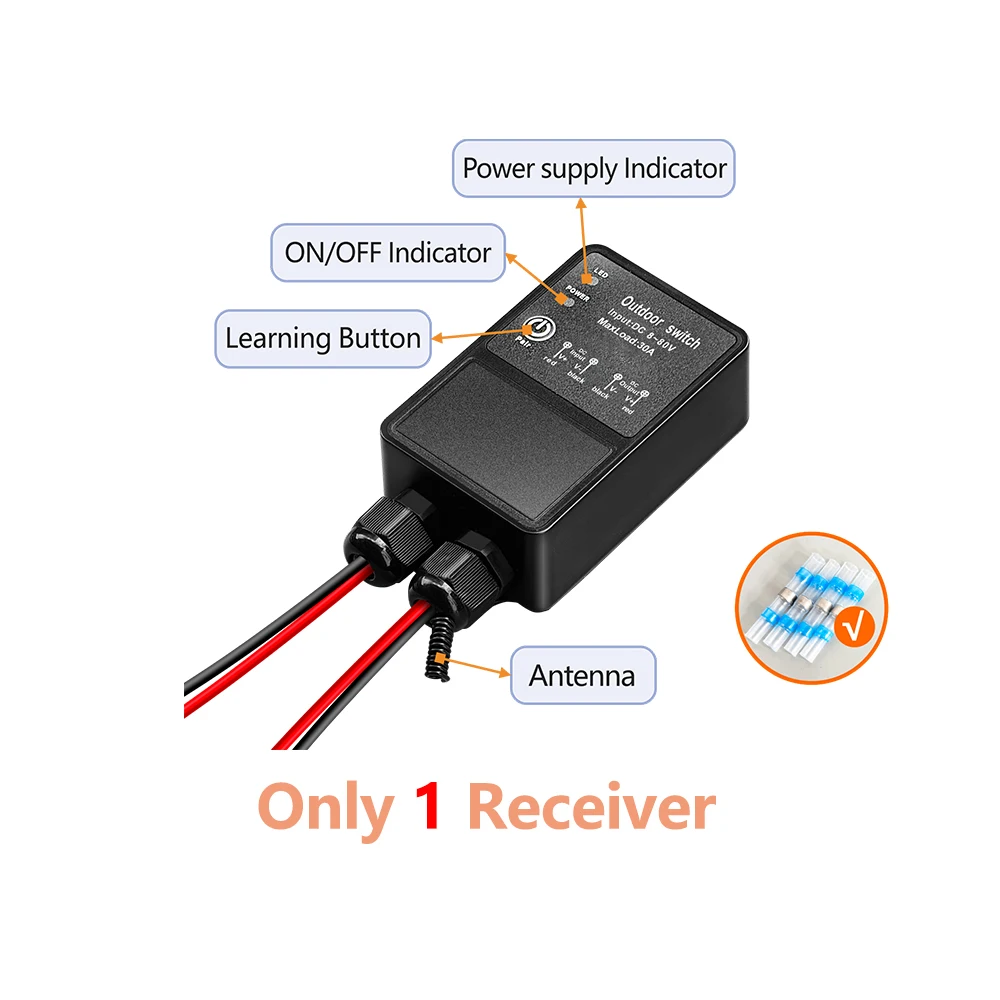

Step1: Press the learning button on the receiver 3 times , Wait for 3 seconds;
Step2: Press the button "ON" the remote, the indicator light flashes and then lights up;
Step3: Press the button "OFF" the remote,succeed.
