Description

SPECIFICATIONS

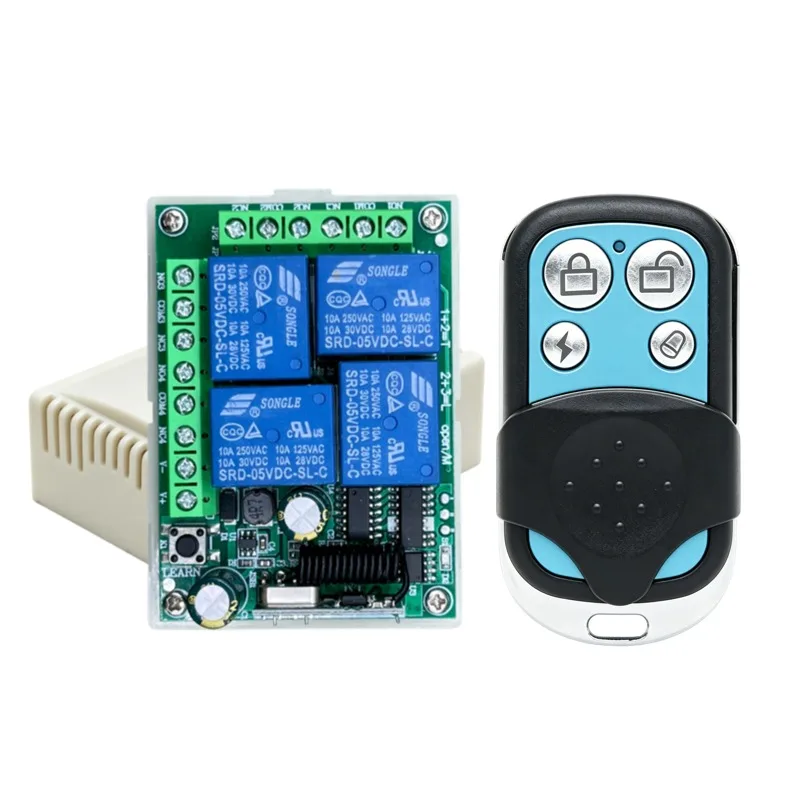

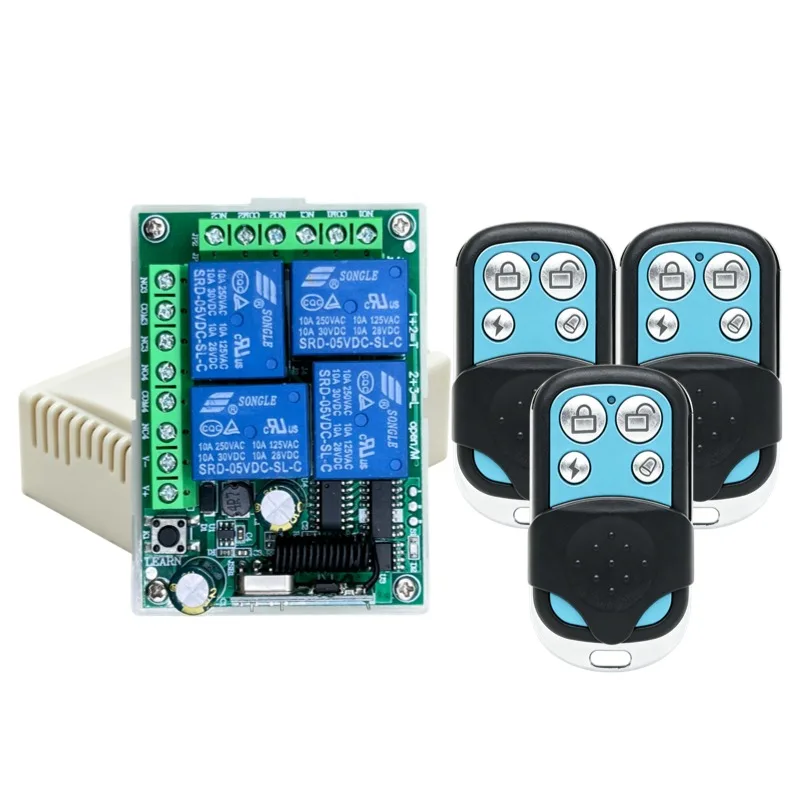

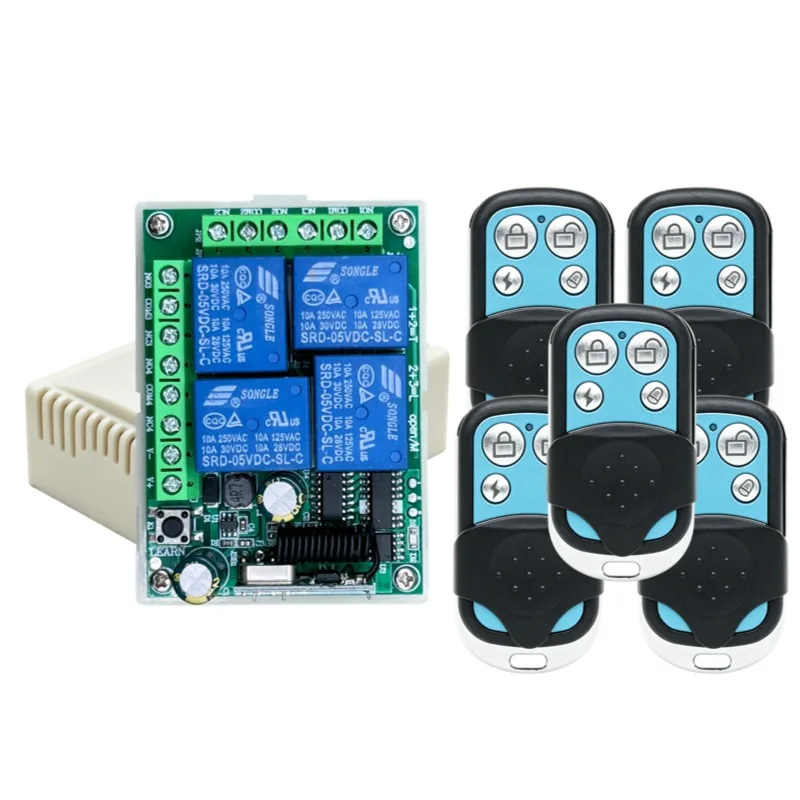

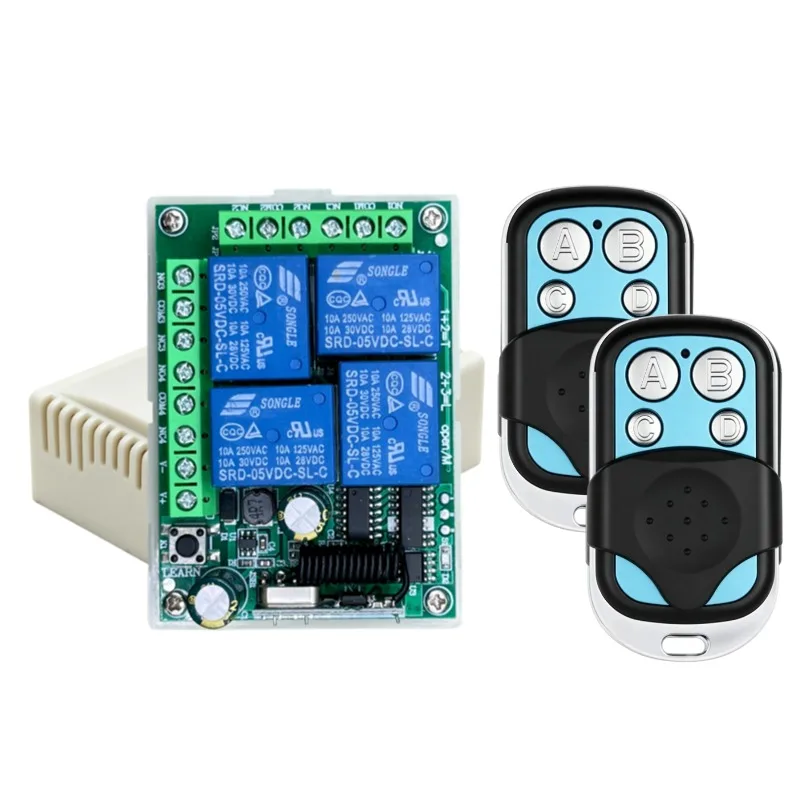

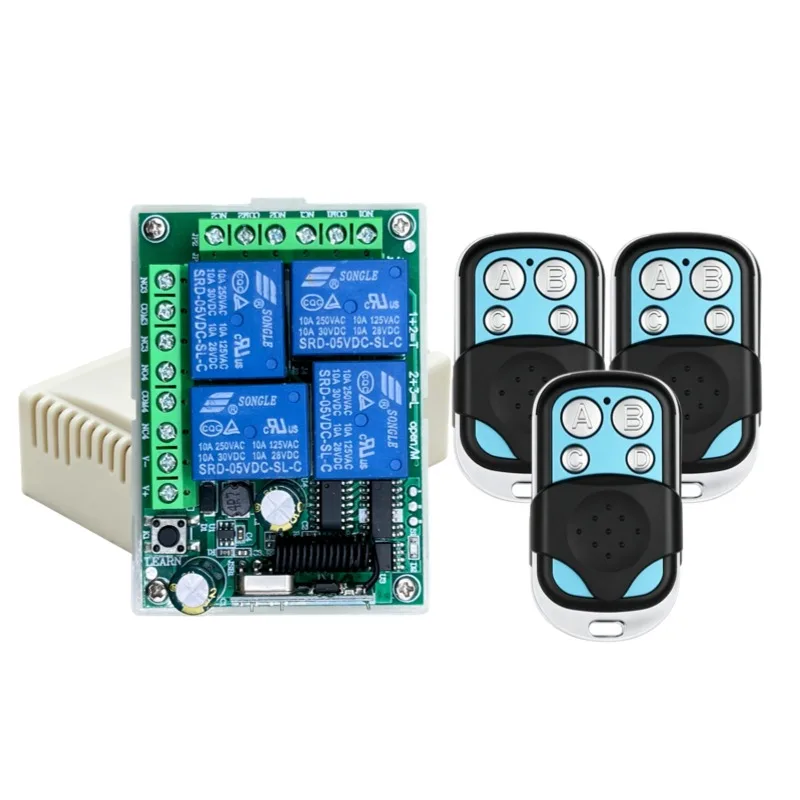

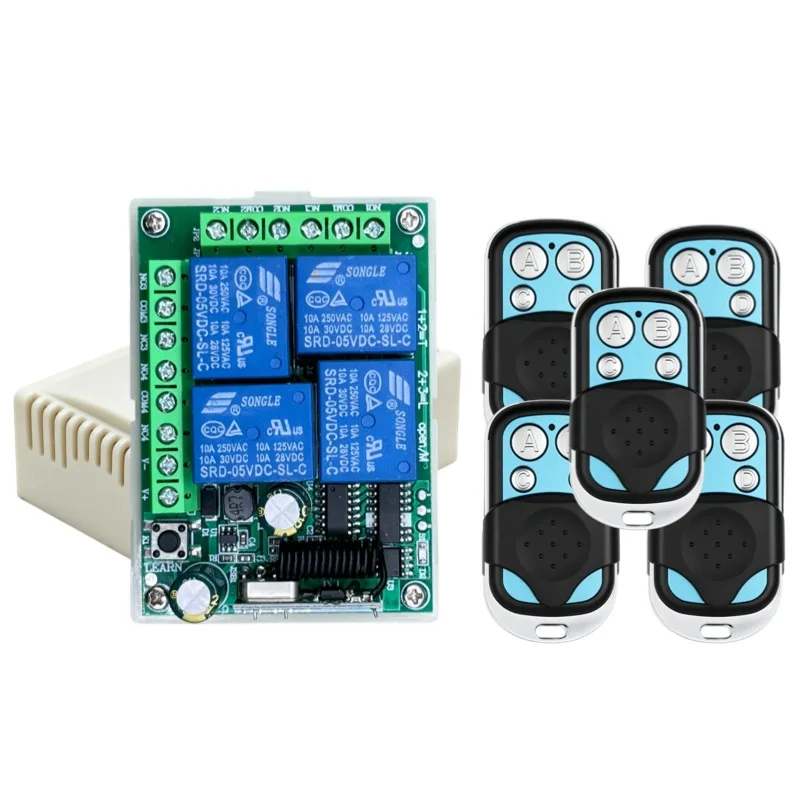

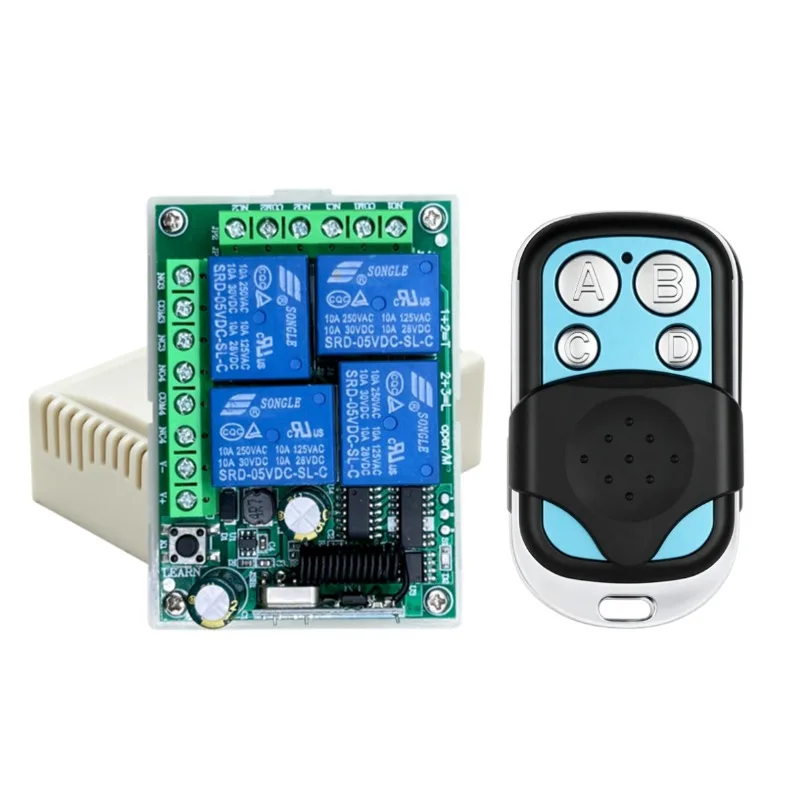

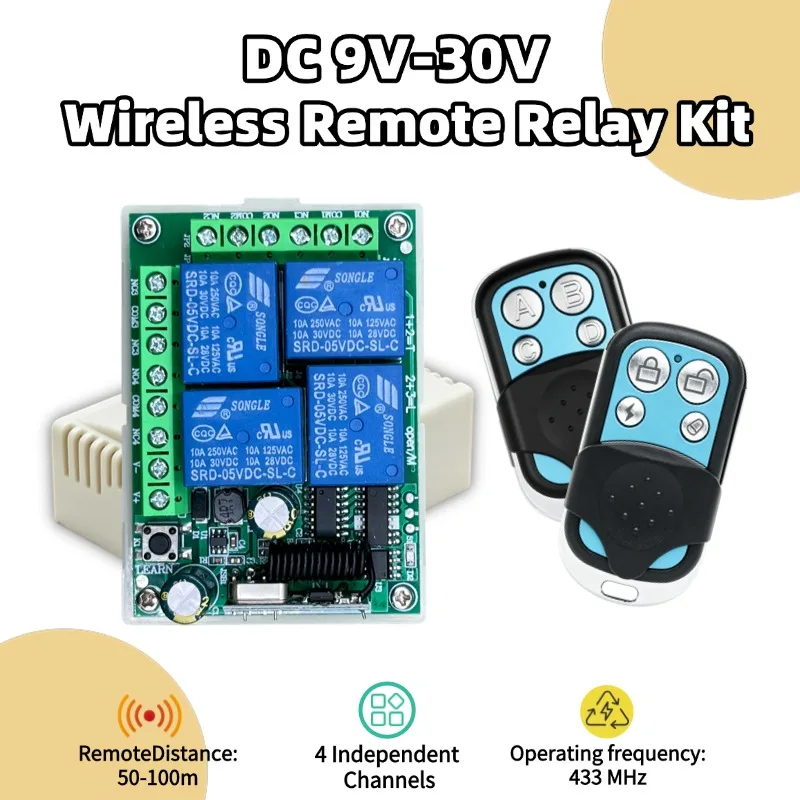

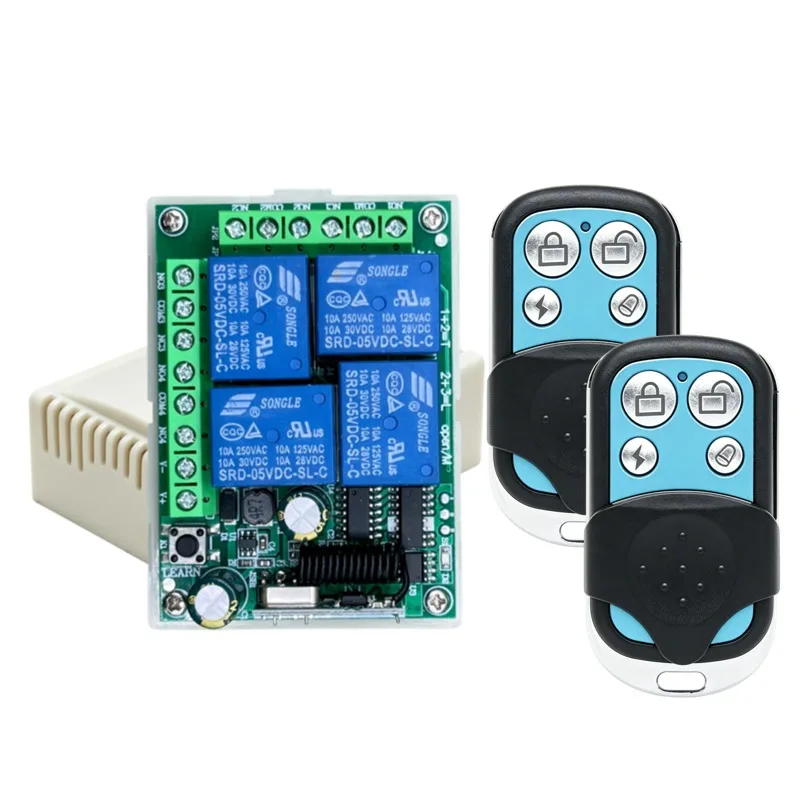

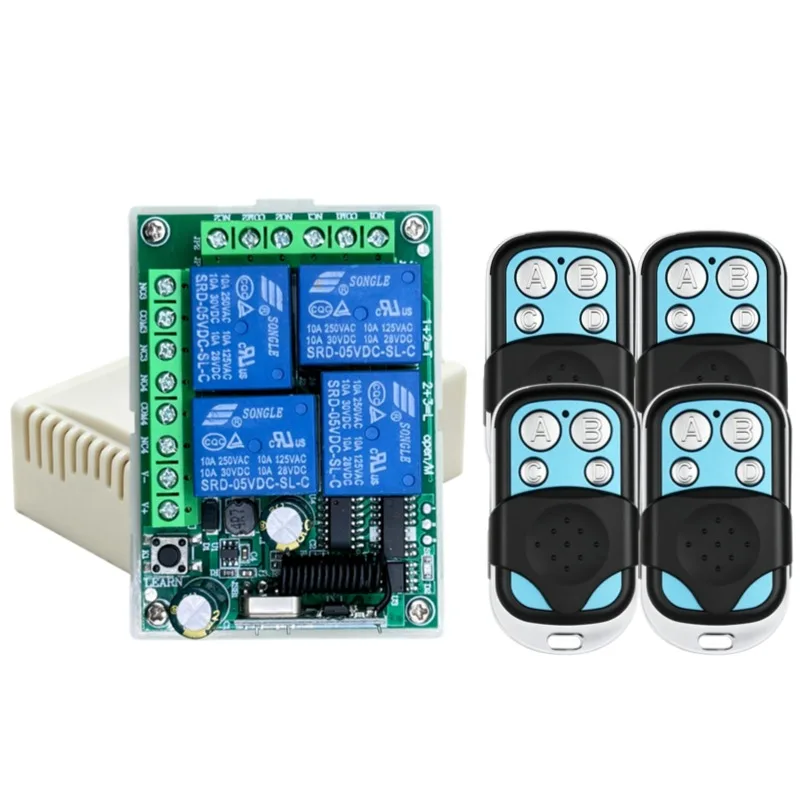

Name: 433Mhz Universal Wireless Remote Control Switch DC12V 4CH Relay Receiver Module and 4-Channel RF 433 Mhz Transmitter For Light/
SKU: db4ah2nflf7000ba5h6g
Availability: InStock

Brand Name: NONE

Channel: 4

Choice: yes

Form-factor: Others

Frequency: 433 MHz

High-concerned chemical: none

Origin: Mainland China

Package: Yes

Support APP: No

Use: Universal

Wireless Communication: RF

Precautions:
1. Do not operate with power on, the power should be turned off to operate, and the power should be turned on after the test is confirmed.

2. When the voltage of the remote control is insufficient, please replace the battery in time (when the voltage of the remote control battery is insufficient, the general remote control distance becomes closer).

3. When using wireless electronic products, you should avoid metal masks, large electronic equipment, strong sources of interference such as electromagnetic fields, etc., to avoid the remote control and the receiving distance being short or unable to work normally.

4. Do not use this electronic product abnormally. Abnormal use will reduce the performance and life of the product, and in severe cases, it will damage the product and bring hidden dangers to your safety.

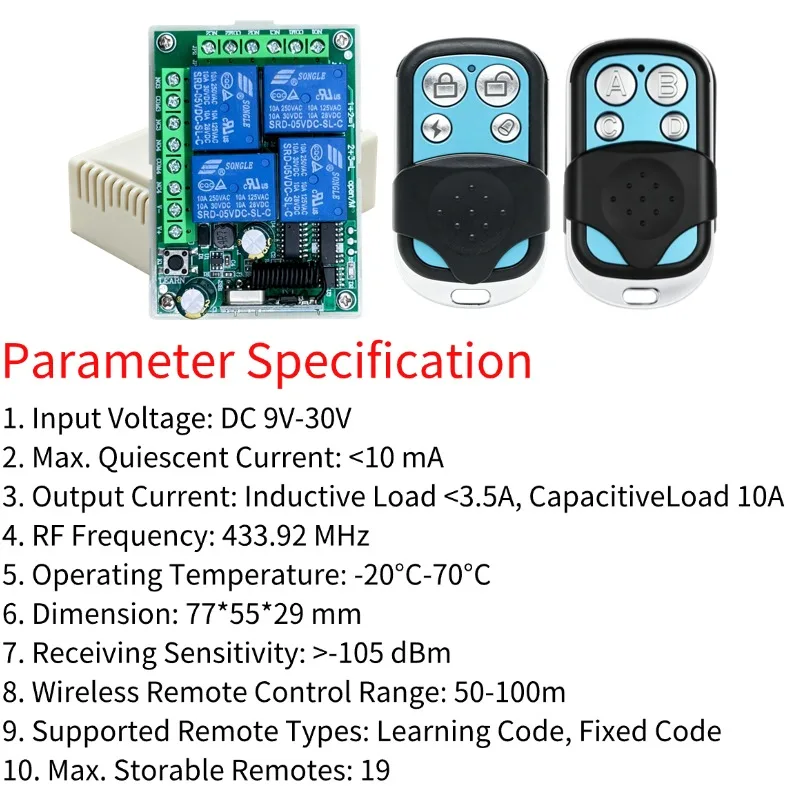

specification

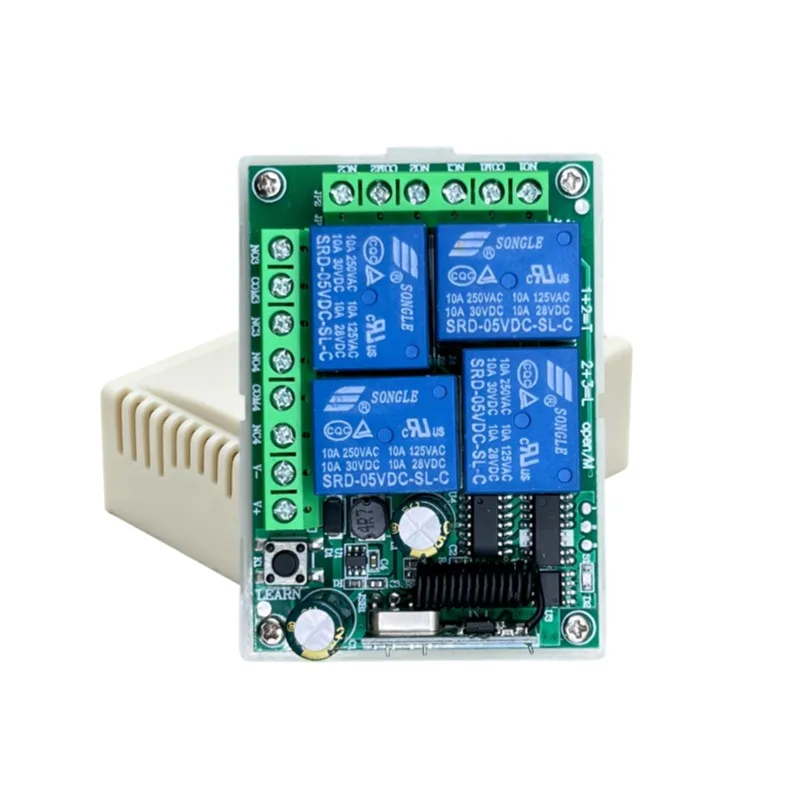

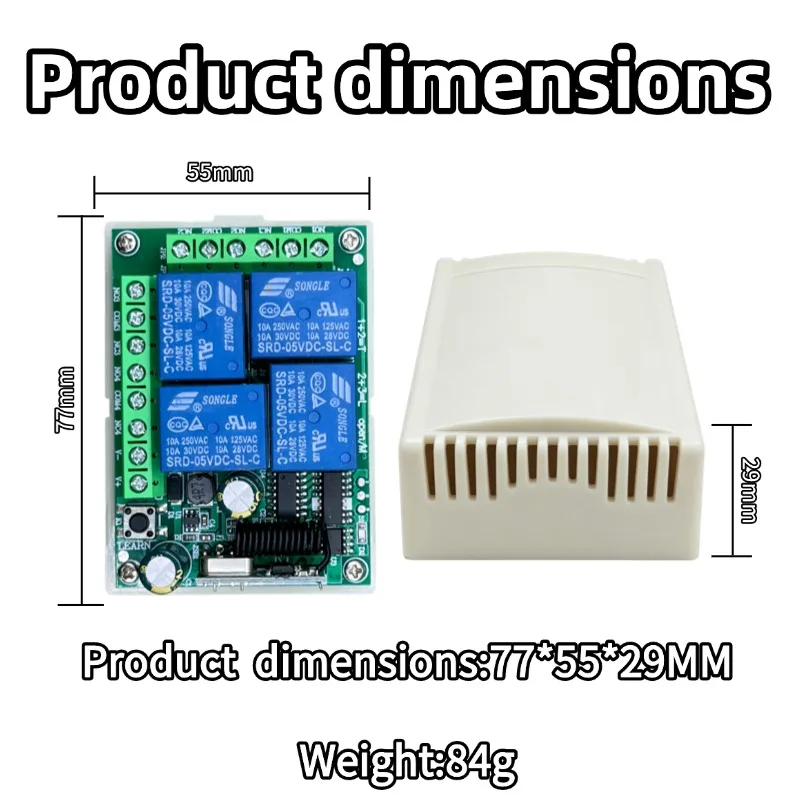

Relay

1. Working voltage: DC 9-30V

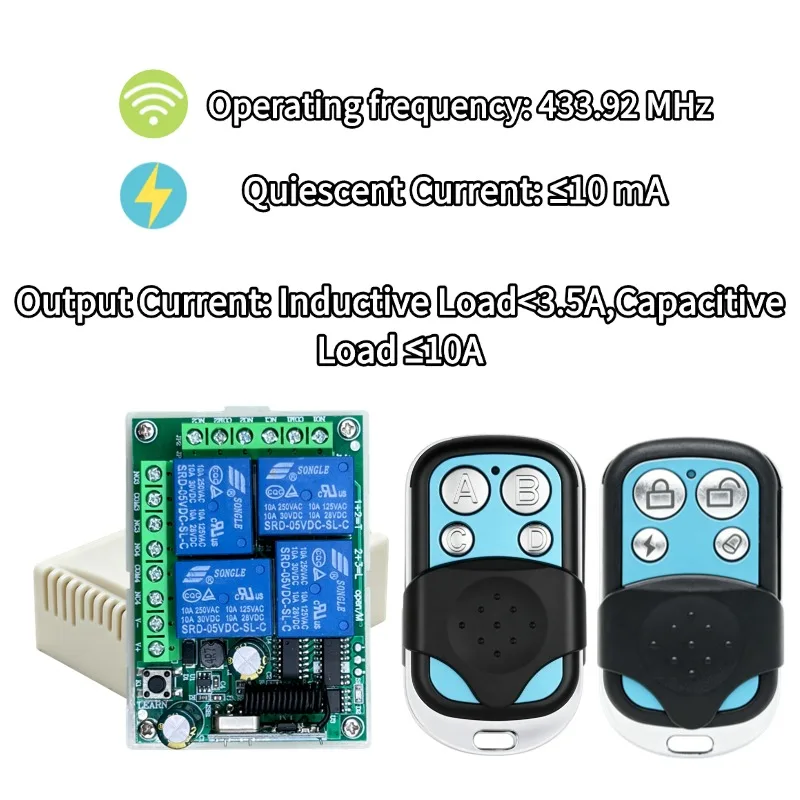

2. Operating frequency: 433.92MHZ

3. Maximum quiescent current: <10mA

4. Output current: inductive load s3.5A, resistive load <10A

5. Receiving sensitivity: >-105dBM

6. Supported remote control types: learning code, fixed code

7. Number of remote controls that can be stored: 19

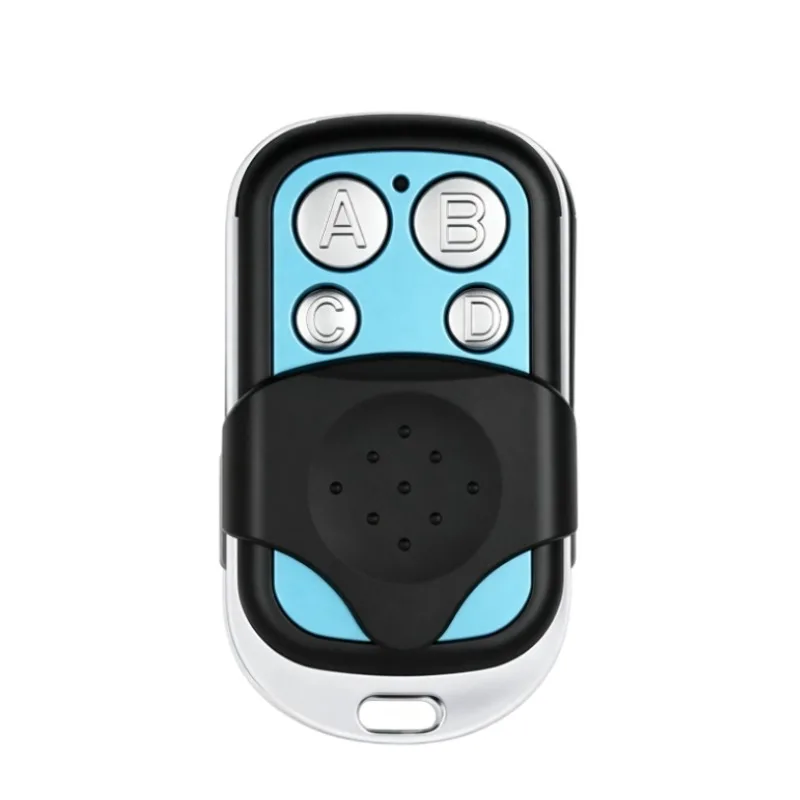

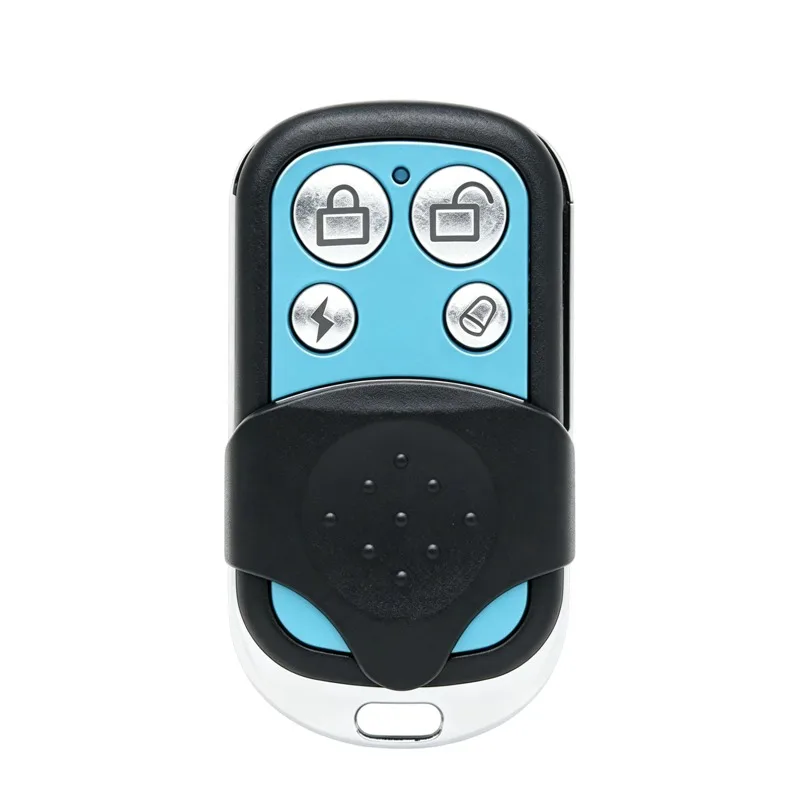

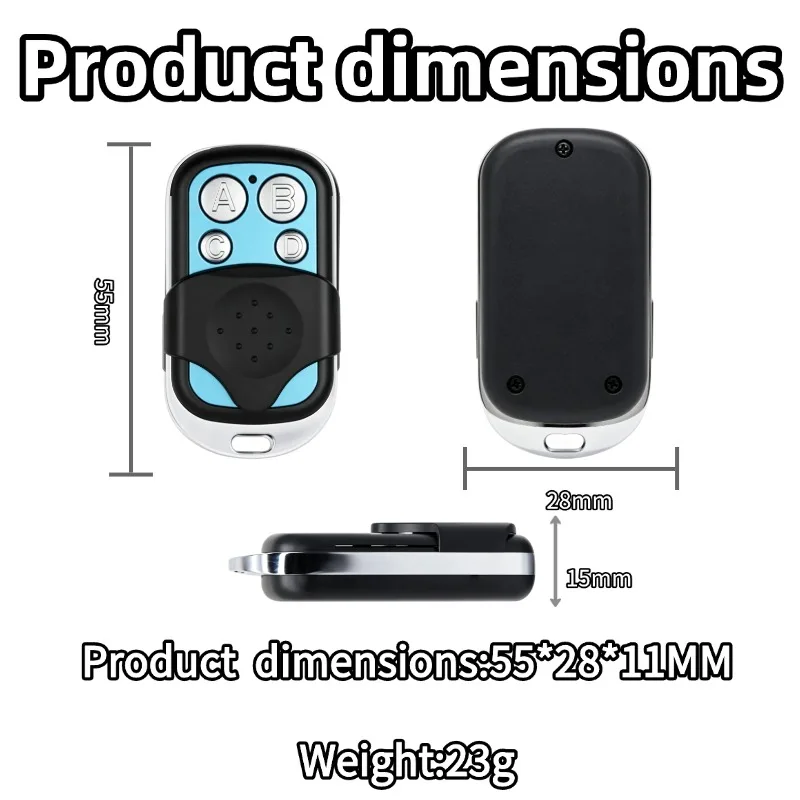

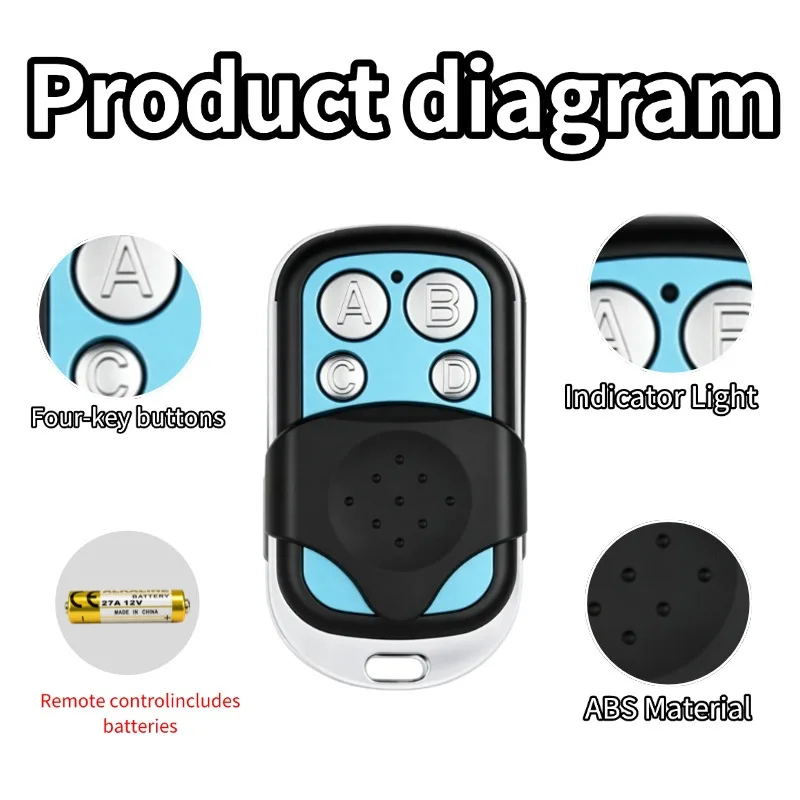

Remote Control

RF frequency : 433MHz
Working Chip: 1527 Learning Code
Product Specifications : 4-Button Design
Battery : CR2032 (Lithium-ion Battery)

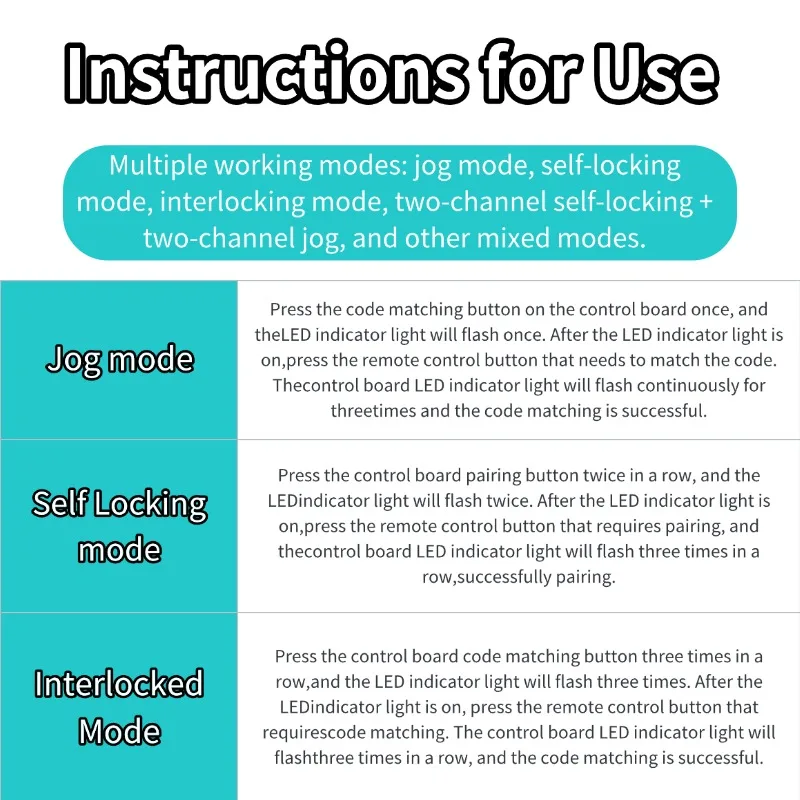

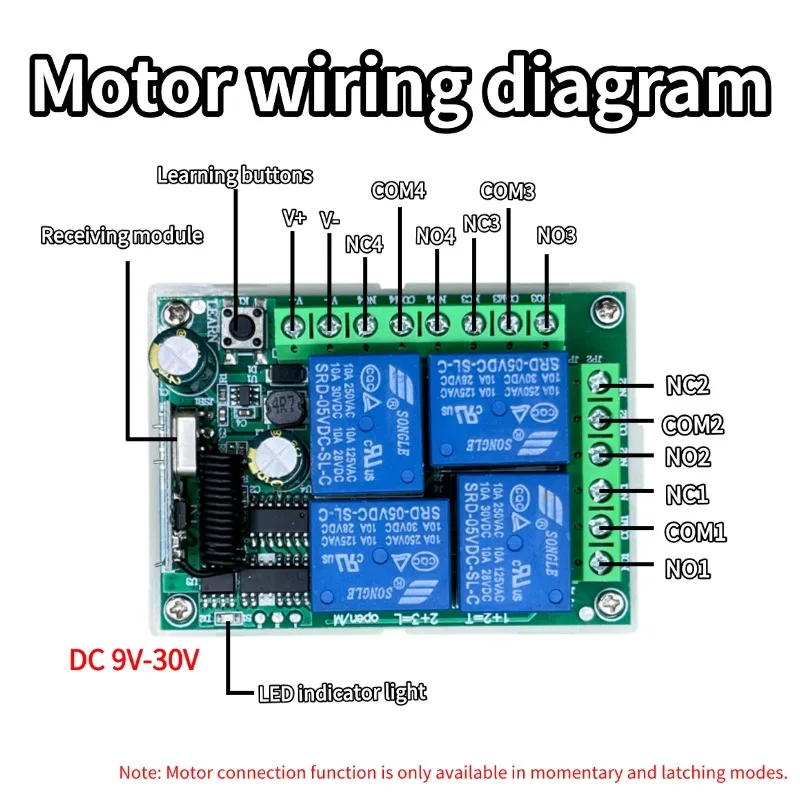

Pairing & Mode Setting Instructions:

1. Jog function:

Press the code pairing button on the control board once, and the LED indicator flashes once. After the LED indicator lights up, press the remote control button that needs to be paired, and the LED indicator on the control panel flashes 3 times in succession.

2. Self-locking function:

Press the code pairing button on the control panel twice in a row, the LED indicator flashes 2 times, and when the LED indicator lights up, press the button on the remote control that needs to be paired, and the LED indicator on the control panel flashes 3 times in succession.

3. Interlock function:

Press the code pairing button on the control panel 3 times in a row, the LED indicator flashes 3 times, and when the LED indicator lights up, press the remote control button that needs to be paired, and the LED indicator on the control panel flashes 3 times in succession.

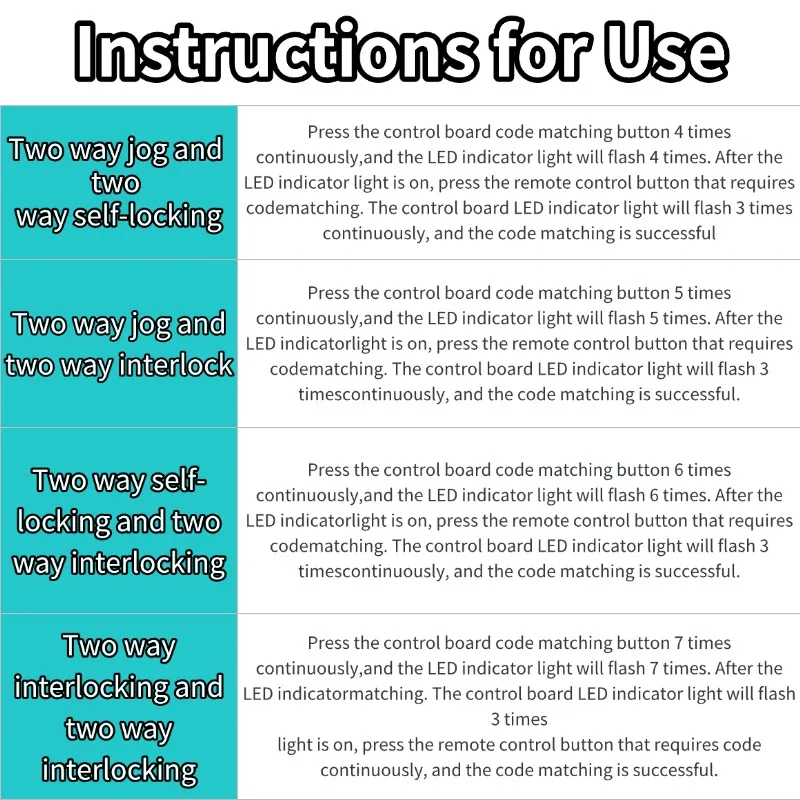

4. Two-way jog and two-way self-locking:

Press the code pairing button on the control panel 4 times in a row, the LED indicator flashes 4 times, and when the LED indicator lights up, press the remote control button that needs to be paired, and the LED indicator on the control panel flashes 3 times in succession.

5. Two-way jog and two-way interlock:

Press the control panel code pairing button 5 times in a row, the LED indicator flashes 5 times, and when the LED indicator lights up, press the remote control button that needs to be paired, and the control panel LED indicator flashes 3 times in succession.

6. Two-way self-locking and two-way interlocking:

Press the code pairing button on the control panel 6 times continuously, the LED indicator flashes 6 times, and when the LED indicator lights up, press the remote control button that needs to be paired, and the LED indicator on the control panel flashes 3 times in succession.

7. Two-way interlock and two-way interlock:

Press the code pairing button on the control panel 7 times continuously, the LED indicator flashes 7 times, and when the LED indicator lights up, press the remote control button that needs to be paired, and the LED indicator on the control panel flashes 3 times in succession.

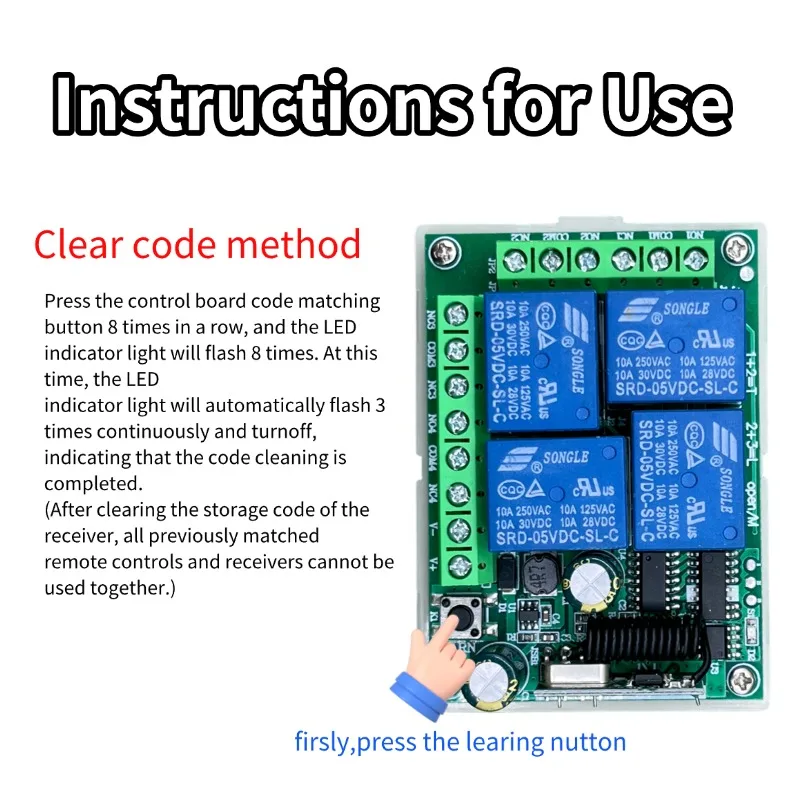

8. Code clearing function:

Press the control panel code pairing button 8 times continuously, the LED indicator will flash 8 times, then the LED indicator will automatically flash 8 times continuously, then the code clearing is completed, and all the previously learned remote control key codes will be cleared.

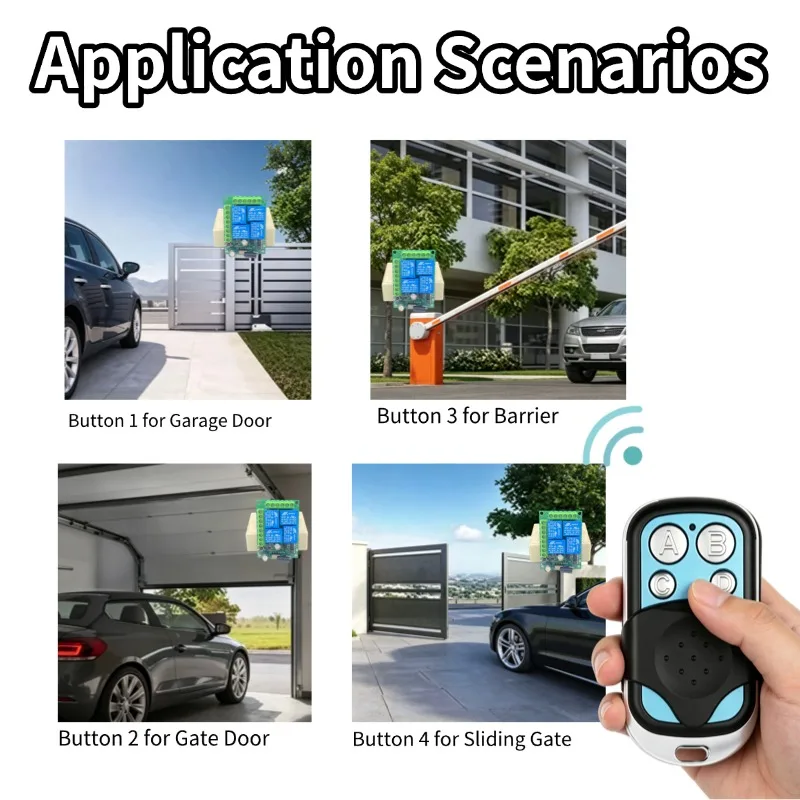

Wide range of uses

Products can be used in homes, farms, factories, offices, laboratories, supermarkets and so on.You can remotely operate every device connect with the relay receiver through the remote control. such as, garage door, electric door, shutter door, expansion door and electric curtain, fan, Lamp, lighting, ventilation device, Signal transmission and so on.

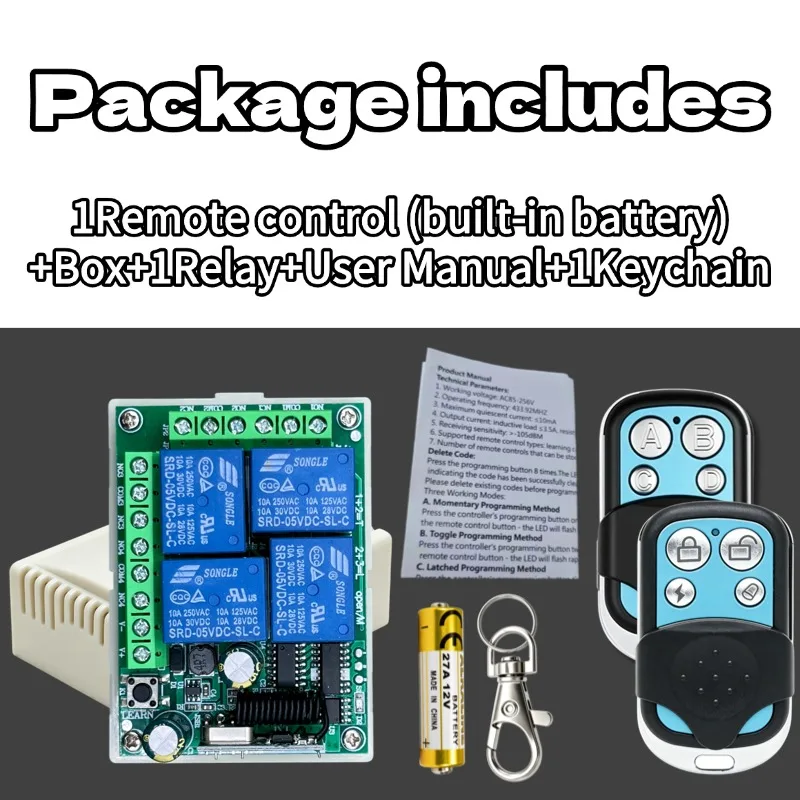

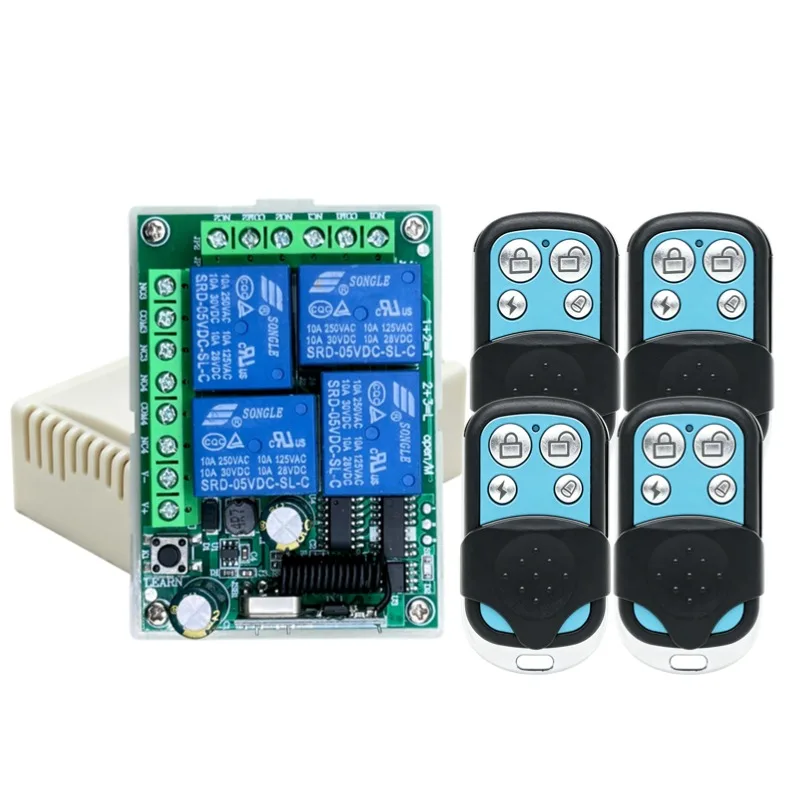

Package include

Receiver module( include Shell )
Remote Control (include battery )
Product manual

Additional information

Color	Relay 1PCS, Lock key 1PCS, 1 Relay 1 ABCD, 1 Relay 2 Lock key, ABCD 1PCS, 1 Relay 1 Lock key, 1 Relay 3 ABCD, 1 Relay 4 Lock key, 1 Relay 2 ABCD, 1 Relay 3 Lock key, 1 Relay 5 ABCD, 1 Relay 4 ABCD, 1 Relay 5 Lock key
Voltage/Plug Type	No plug
