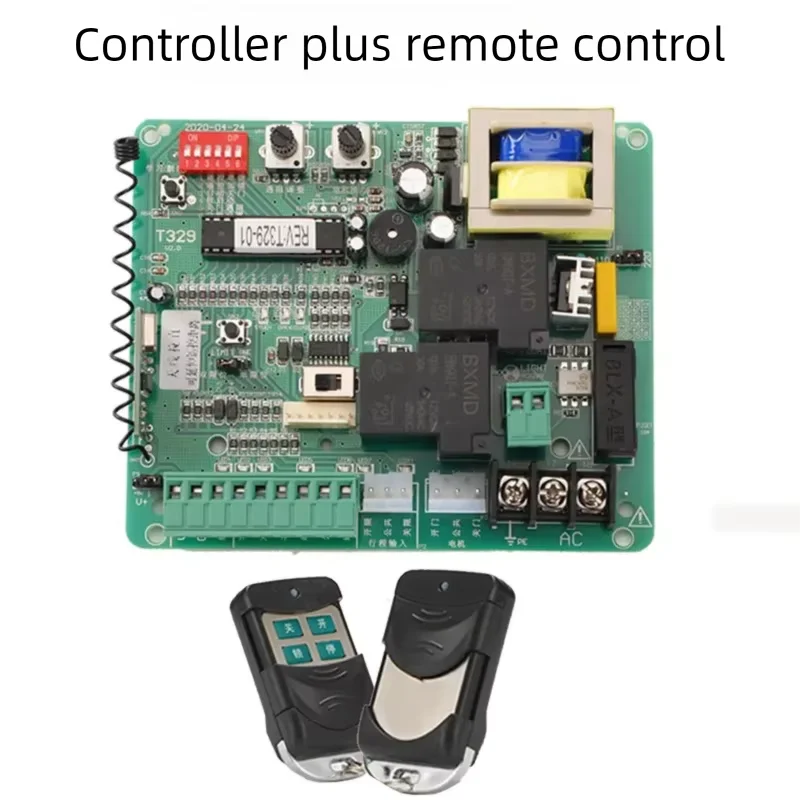

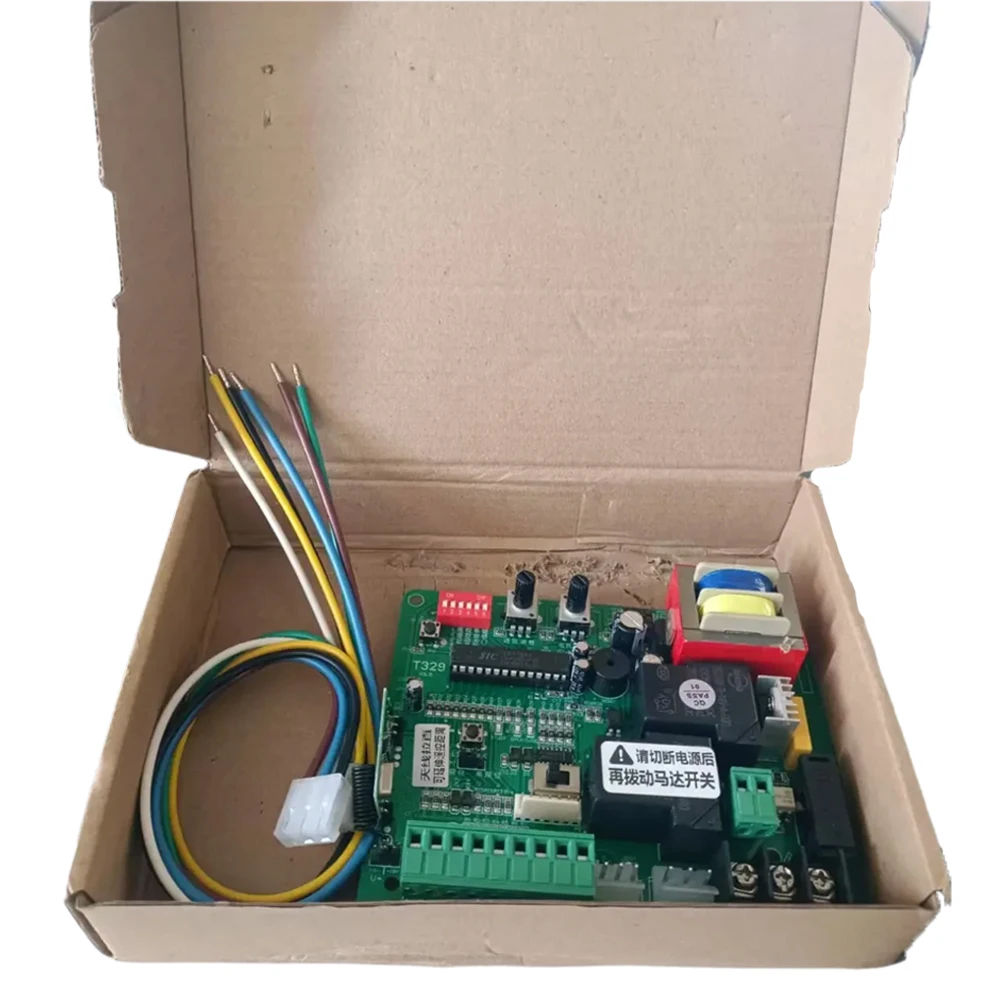

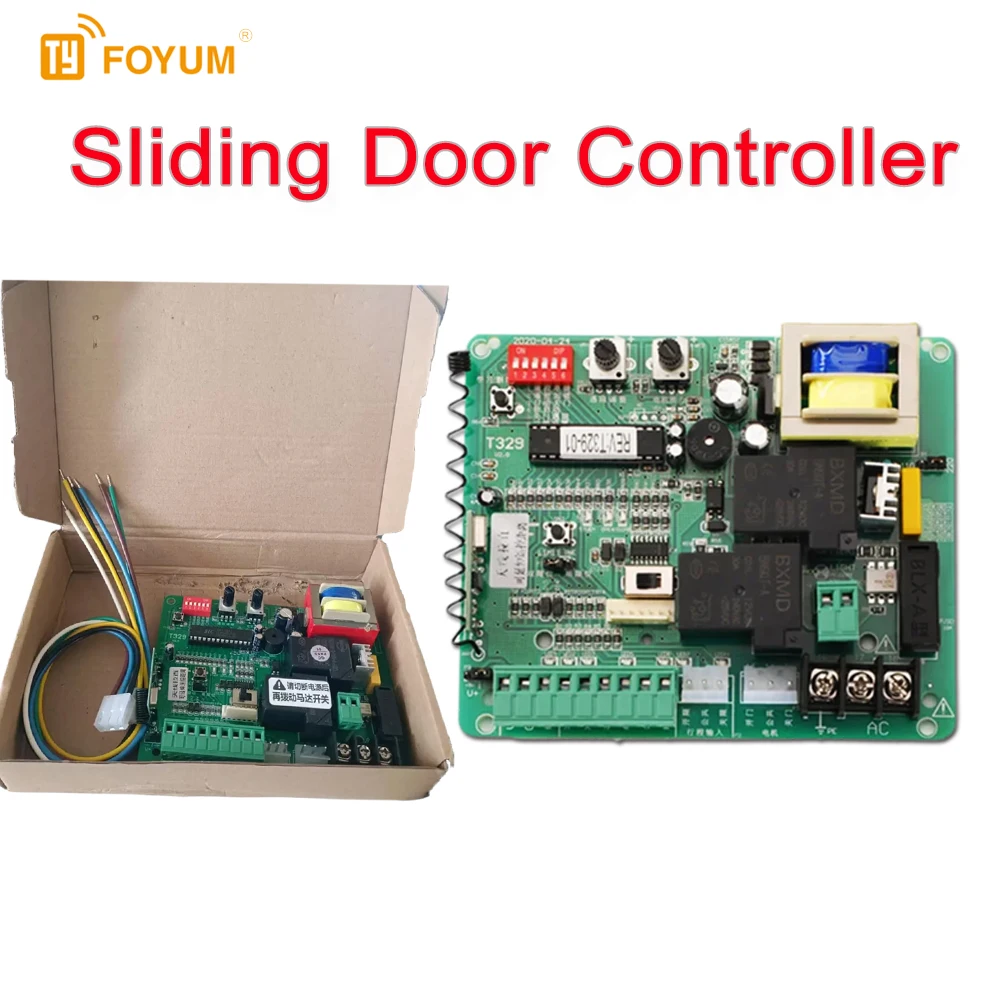

The RF Mando Intelligent Gate Control Board - Sliding Door Controller for Electric Door Opener is a programmable control board for sliding / swing gate motors. 12-24 V DC input, opto-isolated trigger inputs, RS485 / Modbus RTU for BMS integration. Manufactured under RF Mando's ISO-aligned QC process and shipped factory-direct from Xiamen, China.
Key Features
- Universal control board — fits most sliding / swing gate operators
- 12-24 V DC wide input (compatible with solar-powered gates)
- Opto-isolated trigger inputs — safe with 24 V PLCs
- RS485 / Modbus RTU for industrial BMS / SCADA integration
- Built-in surge protection (4 kV contact, 8 kV air discharge)
Technical Specifications
| Input Voltage | DC 12-24 V (wide range) |
|---|---|
| Trigger Inputs | 4 × opto-isolated (open / close / stop / lock) |
| Relay Outputs | 2 × SPDT 10 A / 250 VAC |
| Communication | RS485 / Modbus RTU |
| Operating Temp. | −25 °C to +70 °C |
| Dimensions | 120 × 90 × 25 mm |
| Certifications | CE-RED · RoHS |
Wiring & Pairing Guide
- Connect DC 12-24 V to terminal J1 (+ / GND).
- Wire motor control lines to J2 (COM / NO / NC per relay).
- Wire trigger switches / photocells to J3 opto-isolated inputs.
- Optionally connect RS485 A/B to J5 for BMS integration.
- Power on — green LED solid = ready; red LED = fault (check wiring).
📦 Wholesale & Bulk Orders
Important: All prices EXW Xiamen (China) and do NOT include shipping, duties, or taxes. For B2B wholesale quotes, MOQ negotiations, or OEM/ODM customization, contact Joanna Chen directly.
- 📱 WhatsApp / Telegram: +86 189 6031 3731
- 📧 Email: Joanna@rfmando.com
- 🌐 Website: www.rfmando.com
- 📋 MOQ: 500 pcs (smaller trial orders available on request)
- ⏱️ Sample lead time: 15 days · Bulk lead time: 30-45 days
RF Mando — factory-direct RF remote controls, smart-switch modules, and locksmith tools since 2008. RCM · FCC Part 15 · CE-RED · RoHS compliant. OEM/ODM welcomed.
