Eaton DILM Contactor for Industrial Motor Control Applications
DILM contactors serve a wide range of industrial motor control applications. This guide helps system integrators and panel builders select the right DILM contactor for each industrial use case.
Manufacturing and Assembly Lines
DILM contactors control motors in:
- Conveyor belt systems (DILM25-DILM65)
- Assembly line machinery (DILM40-DILM100)
- Robotic systems (DILM32-DILM80)
- Packaging equipment (DILM25-DILM65)
Typical configurations: reversing contactors for direction control, star-delta starters for high-inertia loads.
Pump and Compressor Control
DILM contactors handle pump and compressor motors:
- Water treatment pumps (DILM40-DILM150)
- Air compressors (DILM65-DILM250)
- Refrigeration compressors (DILM80-DILM170)
- Boiler feed pumps (DILM100-DILM250)
Star-delta starters (using S1/XS1 bridges) reduce starting current for large pumps.
HVAC and Ventilation
DILM contactors for HVAC applications:
- Chilled water pumps (DILM65-DILM150)
- Cooling tower fans (DILM80-DILM250)
- Air handling units (DILM40-DILM100)
- Exhaust fans (DILM25-DILM65)
For high-efficiency motors, use DILM contactors with appropriate AC-3 ratings.
Material Handling
DILM contactors in material handling:
- Crane and hoist motors (DILM65-DILM250 with reversing configuration)
- Elevator systems (DILM40-DILM100)
- Conveyor drives (DILM25-DILM80)
Heavy Industrial
For very heavy industrial applications:
- Steel mills (DILM185-DILM1000)
- Cement plants (DILM250-DILM1000)
- Mining operations (DILM400-DILM1000)
- Marine propulsion (DILM185-DILM800)
Selection Best Practices
- Determine motor full-load current (FLC)
- Select DILM contactor with AC-3 rating above FLC
- Consider duty cycle (number of operations per hour)
- Choose coil voltage matching control circuit
- Add auxiliaries for status feedback as needed

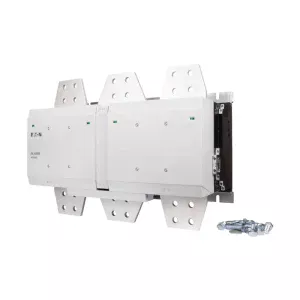

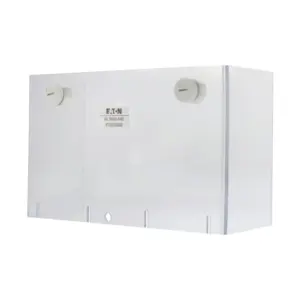

Catalogue references for the specification above: DILM170 (RDC240) contactor for industrial motor control applications and DILM650-XHB terminal shroud, finger-safe front busbar protection. All are MOQ 100 pcs per SKU, 7-15 day lead time, one free sample per SKU, and are supplied on our own PCBA and housing tooling with AQL 5% inspection available.
