Eaton DILM Terminal Shrouds and IP2X Protection Guide
Terminal shrouds provide finger protection and IP2X safety compliance for DILM contactors. RF Manda supplies shrouds compatible with Eaton Moeller DILM series.
What Are Terminal Shrouds?
Terminal shrouds are protective covers that fit over the power terminals of DILM contactors to prevent:
- Accidental finger contact with live terminals
- Tool short circuits during maintenance
- Dust and contamination ingress
- Arc flash incidents during operation
IP2X Standard
IP2X is the international protection rating for finger-safe equipment. It certifies that:
- Solid objects larger than 12.5mm cannot enter
- Test finger cannot contact hazardous parts
- Required for CE compliance in many industrial installations
DILM Shrouds for Different Contactor Sizes
RF Manda supplies shrouds for:
- DILM7-DILM17 – Small frame shrouds
- DILM25-DILM65 – Standard frame shrouds
- DILM80-DILM170 – Large frame shrouds
- DILM185-DILM1000 – Extra-large frame shrouds
Compliance Benefits
Using terminal shrouds helps installations comply with:
- IEC 61439 (low-voltage switchgear assemblies)
- EN 60204-1 (electrical equipment of machines)
- NFPA 70E (electrical safety in the workplace)
- OSHA 1910.333 (selection and use of work practices)
Installation
Terminal shrouds typically snap on or screw onto the contactor body. They can be added in the field to existing contactors for retrofit safety upgrades.
Industrial Applications
Terminal shrouds are particularly important in:
- Food and beverage industry (hygiene + safety)
- Public access installations
- Educational facilities
- Outdoor control panels
- Machine tools with operator access

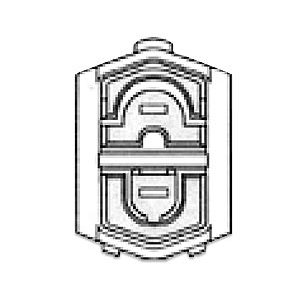

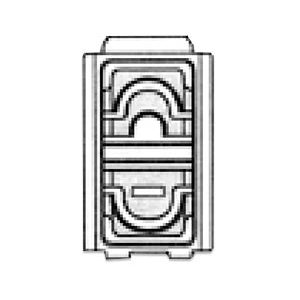

Catalogue references for the specification above: DILM150-XIP2X terminal shroud with IP2X finger-safe protection and DILM65-XIP2X terminal shroud with IP2X finger-safe protection. All are MOQ 100 pcs per SKU, 7-15 day lead time, one free sample per SKU, and are supplied on our own PCBA and housing tooling with AQL 5% inspection available.
Not Infringing
RF Manda DILM terminal shrouds are compatible with and replacement for Eaton Moeller products. Not original Eaton products. No trademark infringement.
