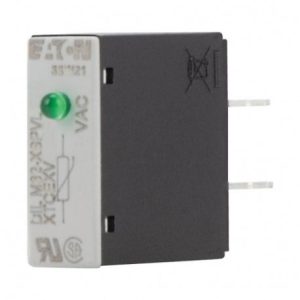

Regular maintenance and prompt troubleshooting extend DILM contactor life and prevent unplanned downtime. This guide covers common issues and diagnostic procedures.

Common Contactor Issues

Issue 1: Contactor will not energize

• Possible cause: Coil failure, control circuit open, low voltage
• Diagnostic: Check coil resistance with multimeter, measure control voltage
• Solution: Replace coil, repair control circuit, address voltage issue

Issue 2: Contactor chatters or hums

• Possible cause: Low coil voltage, failing coil, loose connection
• Diagnostic: Measure voltage at coil terminals under operation
• Solution: Verify control voltage matches coil rating, tighten connections

Issue 3: Contacts weld or stick

• Possible cause: Overload, insufficient AC-3 rating, short circuit
• Diagnostic: Inspect contact surfaces, check motor FLC vs contactor rating
• Solution: Replace contactor with correct rating, address root cause

Issue 4: Excessive heat

• Possible cause: Loose power connections, overloading, poor ventilation
• Diagnostic: Check terminal torque, measure load current, inspect enclosure
• Solution: Retorque terminals, reduce load, improve ventilation

Preventive Maintenance Schedule

Recommended maintenance intervals:

• Monthly: Visual inspection for damage or overheating signs
• Quarterly: Check terminal torque, clean dust
• Annually: Inspect contacts, test coil resistance, verify operation
• 5 years: Consider coil replacement as preventive measure

Diagnostic Tools

Essential tools for DILM troubleshooting:

• Digital multimeter (for coil resistance, voltage measurement)
• Megohmmeter (for insulation testing)
• Infrared thermometer (for hot spot detection)
• Torque wrench (for terminal tightening to specification)

Coil Resistance Test

To test a suspect coil:

1. Disconnect power and isolate coil
2. Measure resistance across A1 and A2
3. Compare to specification (typically 50-500 ohms depending on voltage)
4. Open circuit (infinite resistance) = failed coil, replace
5. Short circuit (very low resistance) = failed coil, replace

Catalogue references for the specification above: DILM7-01 110VDC contactor, DILM7 frame from the 9A to 1000A DILM series and XTCERENCOILMA 110-250V AC/DC replacement coil for XTCE400M22 and XTCE500M22. All are MOQ 100 pcs per SKU, 7-15 day lead time, one free sample per SKU, and are supplied on our own PCBA and housing tooling with AQL 5% inspection available.
