Eaton DILM-XTE Timer Module On-Delay Off-Delay Selection Guide

Eaton DILM-XTE Timer Module Selection Guide

Timer modules add on-delay or off-delay timing functions to DILM contactors. RF Manda supplies DILM-XTE timer modules compatible with Eaton Moeller DILM contactors.

On-Delay Timer (DILM32-XTEE)

The on-delay timer (XTEE) delays the contactor energization after the control signal is applied:

• DILM32-XTEE11(RA24) – On-delay timer, 24VAC/DC, 3 time settings (part 101440)
• DILM32-XTEE11(RAC130) – On-delay timer, 100-130VAC, 3 time settings (part 101441)
• DILM32-XTEE11(RAC240) – On-delay timer, 200-240VAC, 3 time settings (part 101442)

Off-Delay Timer (DILM32-XTED)

The off-delay timer (XTED) maintains contactor energization for a set time after the control signal is removed:

• DILM32-XTED11-1(RA24) – Off-delay timer, 24VAC/DC, 0.05-1 sec (part 105210)
• DILM32-XTED11-1(RAC130) – Off-delay timer, 100-130VAC, 0.05-1 sec (part 105211)
• DILM32-XTED11-1(RAC240) – Off-delay timer, 200-240VAC, 0.05-1 sec (part 105212)
• DILM32-XTED11-10(RA24) – Off-delay timer, 24VAC/DC, 0.5-10 sec (part 104943)
• DILM32-XTED11-10(RAC130) – 100-130VAC, 0.5-10 sec (part 104944)
• DILM32-XTED11-10(RAC240) – 200-240VAC, 0.5-10 sec (part 104945)
• DILM32-XTED11-100(RA24) – 24VAC/DC, 5-100 sec (part 104946)
• DILM32-XTED11-100(RAC130) – 100-130VAC, 5-100 sec (part 104947)
• DILM32-XTED11-100(RAC240) – 200-240VAC, 5-100 sec (part 104948)

Star-Delta Timer (DILM32-XTEY)

The star-delta timer (XTEY) controls the transition timing in star-delta starters:

• DILM32-XTEY20(RA24) – Star-delta timer, 24VAC/DC (part 101446)
• DILM32-XTEY20(RAC130) – Star-delta timer, 100-130VAC (part 101447)
• DILM32-XTEY20(RAC240) – Star-delta timer, 200-240VAC (part 101448)

Time Range Selection

XTEE/XTED offer multiple time settings per module:

• 0.05-1 second: Short delays (motor cool-down, fast cycling)
• 0.5-10 second: Medium delays (pump staging, fan startup)
• 5-100 second: Long delays (lighting control, heating)

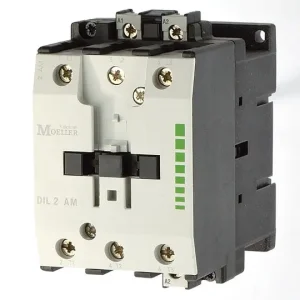

Compatible with DILM Series

DILM-XTE timer modules are compatible with DILM17 to DILM38 contactors. They install on the front of the contactor without tools.

Not Infringing

RF Manda DILM-XTE timer modules are compatible with and replacement for Eaton Moeller products. Not original Eaton products.
