Why Substitution Is a Specification Exercise, Not a Price Exercise
Panel builders re-source contactors for one of three reasons: lead time, price, or continuity of supply. Lead time and price are commercial. Continuity of supply is a specification question, because a substitute that fails to match the incumbent on any of five parameters will stop the panel rather than save money on it.
Parameter Comparison
| Parameter | Eaton DILM | Schneider LC1D | ABB AF |
|---|---|---|---|
| Frame range | DILM7 to DILM95 plus larger frames | LC1D 9A to 1500A | AF 9A to 2850A |
| Auxiliary ecosystem | Broad frame-by-frame accessory coverage | Very broad | Broad |
| Lead time, EU distributor | 7-15 days | 5-10 days | 7-15 days |
| ATEX variants | Not a compatible-replacement route | Available via authorised channel | Available via authorised channel |
| Reorder frequency in general industry | High | High | Moderate |
The Five Parameters That Must Match
- Frame size and current rating. Not the frame number — the usable current at the actual ambient and altitude.
- Coil voltage and type. Including 50Hz versus 60Hz where relevant.
- Auxiliary contact count and type. Especially whether a mirror contact is required.
- Terminal layout and conductor size. The panel wire gauge must land in the new unit’s terminal range.
- Mounting depth. A frame that fits the DIN rail but consumes the remaining enclosure depth is not a fit.
Where LC1D Genuinely Wins, and Where It Does Not
LC1D wins on immediate EU distributor availability, and on ATEX-rated variants. If the project requires ATEX, hazardous-area, or marine certification, the authorised channel is the correct route and no compatible replacement will substitute for it.
For general industrial panel work in volume, DILM covers the frame range and coil options most distributors actually reorder, and that reordering frequency is what determines landed stock cost.
Freeze the specification before you shop the price: frame, AC rating, coil voltage, auxiliary contact count, terminal layout. A quote against a frozen specification is comparable; a quote against “a 25A three-pole” is not.
Request a Quotation — DILM and LC1D Substitution
Send the incumbent model and its ordering code. We reply with the matching frame, a written specification sheet, EXW price and lead time. MOQ 100 pcs per SKU.
Send Inquiry on WhatsAppEmail: Joanna@rfmando.com · MOQ 100 pcs per SKU · 1 free sample per SKU ($30 DHL, buyer pays) · Lead time 7-15 days · T/T 30/70 · EXW Xiamen
Compatibility and IP Position
Eaton and DILM are trademarks of Eaton Corporation plc. Our compatible contactors are independently engineered replacements using our own design and our own tooling, matched to the published frame size, current rating, terminal layout and coil options of the DILM family. We are not an authorised Eaton distributor, we do not apply Eaton branding to our goods, and no Eaton trademark or patent is reproduced on our product. Where a project specification requires an authorised-channel part, that part must come from Eaton.
Catalogue references for the specification above: RF Mando compatible DILM32-XTED11-1 (RAC240) contactor and LC1D 18A 3P+1NO/1NC rail-mount contactor. All are MOQ 100 pcs per SKU, 7-15 day lead time, one free sample per SKU, and supplied on our own PCBA and housing tooling with AQL 5% inspection available.
Where to Order
- Eaton DILM Contactors — DILM7 through DILM95 frames
- Eaton DILM Coils — 24V / 42V / 48V / 110V / 220V / 230V / 400V / 500V / 600V

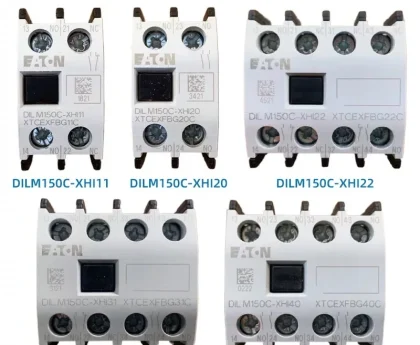

- Eaton DILM Auxiliary Contacts — 1NO / 1NC add-on blocks
- Eaton DILM Contactor — complete catalogue and cross-reference
Terms
MOQ 100 pcs per SKU. One free sample per SKU ($30 DHL, buyer pays). Lead time 7-15 days. Payment T/T 30/70. Prices EXW Xiamen. 100% functional test on every unit; a third-party QC report at AQL 5% is available on request. CE-RED, RoHS and FCC Part 15 documentation; RCM available.
